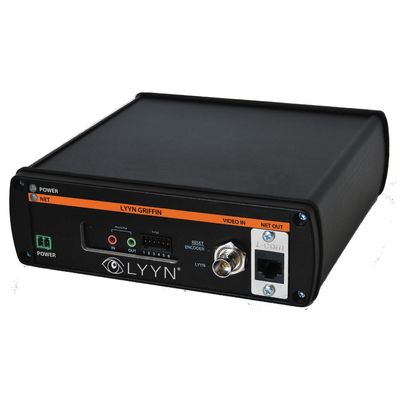

Lyyn Griffin - Real-Time Video Solution for Hybrid CCTV Networks System
The ONVIF compliant LYYN® real-time video solution for hybrid CCTV networks, providing enhanced visibility as well as analog to digital encoding. Cost-effective upgrade: LYYN Griffin offers a very cost-effective upgrade solution. When replacing an analog CCTV system with IP video you need an encoder to maintain your investment in analog cameras. With LYYN Griffin you not only keep the camera, you enhance it to a new level of visibility capabilities, as well as encode the video to IP.
The encoder part of LYYN Griffin is based on the Axis Q7401 Video Encoder. You integrate LYYN as you would any standard Axis product and control the video enhancement through a common interface. The interface is based on the standard Axis ACAP interface where LYYN Griffin controls are run as an integrated application. LYYN Griffin also supports VAPIX.
Available video enhancement settings
- Lyynification™
- level
- window position
- window size
- Video
- saturation
- hue
- brightness
- contrast
- sharpness
- Video input: PAL 625-line 25 fps or NTSC 525-line 30 fps, autosensing of format
- Video compression
- H.264 (MPEG-4 Part 10/AVC)
- Motion JPEG
- Resolutions: 176x120 to 720x576
- Frame rate:
- H.264: 30/25 (NTSC/PAL) fps in all resolutions
- Motion JPEG: 30/25 (NTSC/PAL) fps in all resolutions
- Video streaming
- Multi-stream H.264 and Motion JPEG: 3 simultaneous,
- individually configured streams in max. resolution at 30/25 fps;
- more streams if identical or limited in frame rate/resolution
- Controllable frame rate and bandwidth
- VBR/CBR H.264
- Image settings
- Compression, color, brightness, contrast
- Rotation: 90°, 180°, 270°
- Aspect ratio correction
- Mirroring of images
- Text and image overlay
- Privacy mask
- Enhanced deinterlace filter
- Processor and memory
- ARTPEC-3, 128 MB RAM, 128 MB Flash
- Local storage internal 8GB SD/SDHC memory card
- Audio streaming: Two way, full duplex
- Audio compression
- AAC-LC 8 kHz 32 kbit/s, 16 kHz 64 kbit/s
- G.711 PCM 8 kHz 64 kbit/s
- G.726 ADPCM 8 kHz 32 or 24 kbit/s
- Audio input/output
- External microphone input or line input
- Line level output
- Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X network access control, digest authentication, user access log
- Supported network protocols: IPv4/v6, HTTP, HTTPS, QoS layer 3 DiffServ, FTP, SMTP,
- Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
- Application Programming Interface:
- Open API for software integration, including VAPIX® from Axis Communications available at www.axis.com Includes the ONVIF specification available at www.onvif.org Support for AXIS Video Hosting System (AVHS) with OneClick Camera connection
- Intelligent video: Video motion detection, active tampering alarm, audio detection
- Alarm triggers: Intelligent video, external inputs, video loss, disk full
- Alarm events File upload via FTP, HTTP and email
- Notification via email, HTTP and TCP
- External output activation
- Local storage
- Video buffer: 64 MB pre- and post-alarm
- Casing: Metal casing. Standalone or wall mount
- Dimensions and weight:
- Depth: 184 mm Width: 172 mm Height: 54 mm
- Weight: 950 g excluding power adapter
- Power:
- 8-20 V DC, max. 7.2 W or
- Power over Ethernet IEEE 802.3af Class 2/3
- Connectors
- Analog composite video BNC input, NTSC/PAL auto-sensing
- RJ-45 10BaseT/100BaseTX PoE
- DC terminal block: power in 8-20 V DC, max. 7.2 W or
- power out 12 V DC, max. 5 W
- I/O terminal block for four configurable inputs/outputs
- 3.5 mm mic/line in, 3.5 mm line out
- Operating conditions
- 0-50 °C (32-122 °F)
- Humidity 20-80% RH (non-condensing)
