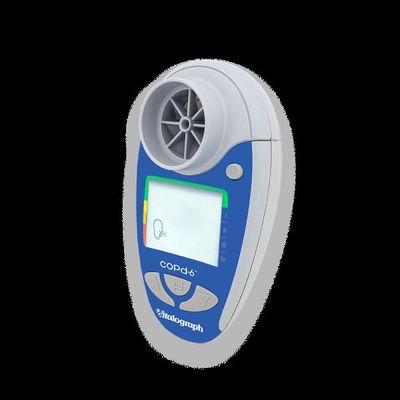

VitalographModel copd-6 -Screener

SHARE
Fast & accurate COPD screener to identify those at risk of COPD at the pre-symptomatic stage. The Vitalograph copd-6™ identifies those at risk of COPD at the pre-symptomatic stage. The device screens out those whose FEV1 is normal. The copd-6 screener allows early medical intervention and facilitates better clinical outcomes. Monitors COPD patients using their ‘number’, the obstructive index which is based on a percent of predicted. Facilitates ‘case selection’ so that spirometry can be focused on those likely to be diagnosed with COPD. Screens out anyone with normal FEV1 without the risk of false COPD negatives. Displays FEV1, FEV6, ratio and % predicted, obstructive index, COPD classification and lung age. Displays the GOLD COPD classification (stage I – IV) to help recognize the need for a change in the patient’s management plan. Built-in quality of blow indicator. Large, easy-to-read display.

Most popular related searches

One of our 4000 Series of respiratory monitors and screeners, the COPD-6 comes with:

  • Carry pouch
  • Instructions for use
  • 2 x AAA Batteries



Get certified device training via our online training resource SpiroTutor™ by Vitalograph® which is available 24/7. We provide one FREE enrollment with the registration of your monitor.  A training certificate is issued upon completion.

Respiratory Monitor copd-6

Model: 4000

Dimensions: 109mm (length) x 63mm (width) x 42mm (height)

Flow Detection Principal: Stator rotor

Accuracy: Better than ± 3%

Back Pressure: Less than 0.15kPa/L/second @ 14L/s

Measurement Range: 0 – 9.99 L BTPS

Power Supply: 3V (2 x 1.5V AAA batteries)

Battery Life: 3 months of use, 3 tests per day

Quality Check: Slow start of test (Vext>5%) or a cough detected in the first second

Performance Standards & Guidelines: ATS/ERS 2019, ISO 23747:2015, ISO 26782:2009

Auto Power Down Time: 2 minutes
