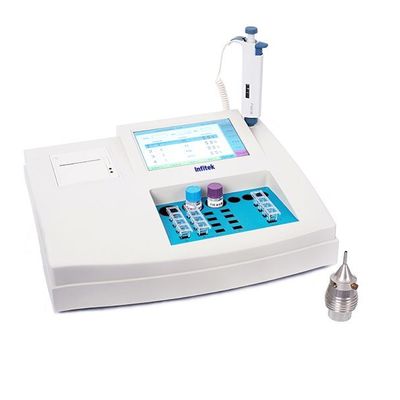

Infitek - Model BCA-SA-4-16 -Semi-Auto Coagulation Analyzer

1. Double magnetic route
2. Auto-linked pipette
3. Testing channel: BCA-SA-4-16
4. 7’’ color Touch Screen
5. Built-in thermal printer

Performance

1. Double magnetic route, stable performance without interference
2. The CPU adopts ARM technology to measure the motion of the magnetic ball to work out the coagulation time
3. It can perform multi-parameter simultaneously with better accuracy, precision, and repetition
4. 100 assay parameters and 1000 test results can be saved
5. Clock CMOS chip inserted
6. Reagent-open system
7. Built-in thermal printer
8. Interface: RS232, USB, pipette-linked port
9. Power supply: AC220V±15%, 50Hz, 80VA

• Model: BCA-SA-4-16
• Test method: double magnetic route
• Sample consumption: ≤200uL
• Reagent consumption: 50uL~200uL
• Temperature: 37℃±0.5℃
• Adding sample: by a timing linkage
• Precision: CV ≤3%
• Test speed: ≤300s(depend on setting)
• Sample warming up position: 16
• Reagent warming up position: 6
• Dimension: 370(L) x 290(W) x 120(H)mm
• Weight: 4Kg(net), 6Kg(gross)
