Michigan Instruments

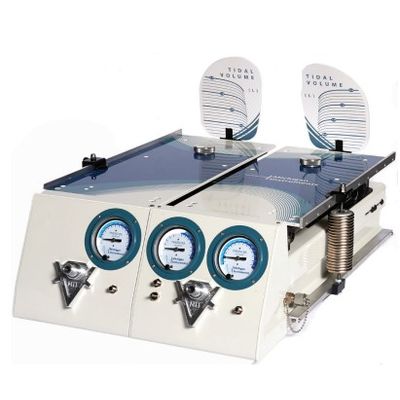

MI - Model Advanced Artificial Lung Simulation -Single and Dual Adult Models
Our Lung Simulators provide accurate representations of adult pulmonary mechanics. The total lung capacity replicates a typical adult patient. If you need to create spontaneous breathing, the model is also available as a Spontaneous Breathing Lung (SBL™). The addition of the Adult Head Simulation Module (HSM-A) further expands the applications for this dynamic system.
Most popular related searches
lung capacity
lung simulator
airway pressure
breathing system
lung mechanic
lung disease
therapy system
disease lung
- Dual Adult simulator provides a more fully-to-scale simulation
- Each lung can be independently adjusted for compliance and airway resistance, simulating symmetrical or asymmetrical lung disease
- Results of asymmetrical settings are clearly visible and easily monitored
- Single Adult simulator provides a range of simulations in a smaller package
- Single Adult simulators are ideal for those focused on adult lung mechanics, devices, and therapies
- Both devices are available with or without PneuView electronics and software
- Add Spontaneous Breathing to create a perfect breathing system
- Tidal volume capacity of 2.0 liters in each adult lung.
- Single Adult - 2.0 liters
- Dual Adult - 2.0 liters in each = 4.0 liter capacity
- Lung airway pressure -10 to 120 cmH2O
- Compliance - .01 to .10 L/cmH2O
- Resistance - Rp5, Rp10, Rp20, Rp50 cmH2O/L/sec
