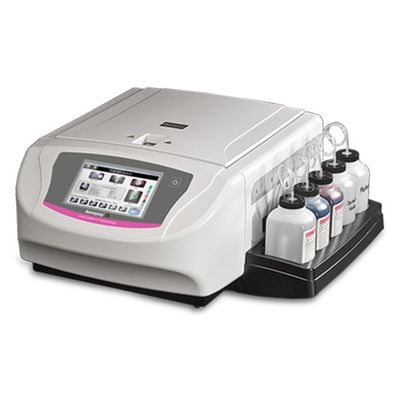

Aerospray - Model TB Series 2 -Slide Stainer
Bringing the ground-breaking value of Aerospray® technology to TB staining. “Delivering textbook quality staining with trouble-free operation.” The new Series 2 stainers fulfills Today’s needs for Laboratories, with an easy and intuitive 21st century interface. The Aerospray TB automated slide stainer will stain acid-fast bacteria (AFB) using either carbol fuchsin or fluorescence reagents. The Aerospray TB stainer provides a wide range of staining settings with many possible variables, allowing you to adjust staining as you like for different types of specimens. Only fresh reagents are applied to the slides so there is no chance of slide-to-slide cross-contamination. The reagent consumption is very low, throughput is high using either the 12- or 30-slide slide carousel, and slides are dry and ready for the microscope in five minutes giving superior results.
With the addition of the optional Cytopro® Cytocentrifuge Rotor, the Aerospray TB is also able to deposit cells onto microscope slides.
- 1 to 12 or 1 to 30 Slides, depending on carousel.
- 100 to 2000 rpm (±5%), user programmable.
- 57 cm x 25 cm x 54 cm (22” x 10” x 21”).
- 58 cm (23”).
- 15.6 kg (34.4 lb).
- 100 to 240 VAC (±10%) @ 50-60 Hz, 200 watts maximum.
- Outlet on rear panel.
- Lid interlock: Lid must be closed for operation, and is locked down during carousel rotation.
- Level detection on all reagent lines
- Level detection in waste bottle
- Model AC-160
- 8 chambers and slides
- 1.1 kg (2.5 lb)
- 22.6cm x 6.2 cm (8.9" x 2.4")
