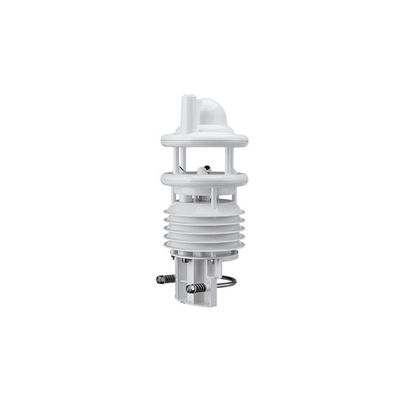

OTT HydroMet - Model LUFFT WS800-UMB -Smart Weather Sensor
From the WS product family of professional intelligent measurement transducers with digital interface for environmental applications. Integrated design with ventilated radiation protection for measuring: Air temperature, relative humidity, precipitation intensity, precipitation type, precipitation quantity, solar radiation, lightning detection, air pressure, wind direction and wind speed. One external temperature sensor is connectable.
The robust and maintenance-free smart weather sensor WS800 is designed for professional meteorological applications in all climate zones. It delivers reliable data, even in extreme ambient conditions.
Examples of use:
- Weather observation for road and traffic control systems
- Automatic weather station / Automatic weather sensor (AWS)
- PV-Monitoring / Solar Monitoring on photovoltaic farms
- Hydro-meteorological stations
- Weather observation for building automation
- Weather stations at airports, marinas and onboard ships
General
- Dimensions: Ø approx. 150mm, height approx. 317mm
- Weight: Approx. 1.5kg
- Interface: RS485, 2-wire, half-duplex
- Power supply: 4...32 VDC
- Operating temperature: -50...60°C
- Operating rel. humidity: 0...100% RH
- Heating: 40VA at 24VDC
- Cable length: 10m
- Protection level housing: IP66
- Mast mounting suitable for: mast diameter 60 - 76mm
Lightning detection
- Lightning detection: Number of lightning events
- Coverage area: 5-10km
Temperature
- Principle: NTC
- Measuring range: -50 ... 60 °C
- Unit: °C
- Accuracy: ±0.2°C (-20...50°C), otherwise ±0.5°C (>-30°C)
Relative humidity
- Principle: Capacitive
- Measuring range: 0 ... 100 % RH
- Unit: % RH
- Accuracy: ±2% RH
Air pressure
- Principle: MEMS capacitive
- Measuring range: 300 ... 1200 hPa
- Unit: hPa
- Accuracy: ±0.5 hPa (0...40°C)
Wind direction
- Principle: Ultrasonic
- Measuring range: 0 ... 359.9 °
- Unit: °
- Accuracy: < 3° RMSE > 1.0m/s
Wind speed
- Principle: Ultrasonic
- Measuring range: 0 ... 75 m/s
- Unit: m/s
- Accuracy: ±0.3m/s or ±3% (0...35m/s) ±5% (>35m/s) RMS
- Resolution: 0.1
Precipitation intensity
- Resolution: 0.1 mm/h
- Precipitation quantity
- Resolution: 0.01
- Reproducibility: Typical >90%
- Measuring range drop size: 0.3...5mm
- Type of precipitation: Rain/snow
Radiation
- Unit: W/m²
- Accuracy: 5%
- Response time (95%): < 1s
- Spectral range: 300 to 1100nm
- Measuring range: 1400 W/m²
- First and only all-in-one compact weather sensor with lightning detection
- Built-in data pre-processing, universal interfaces and selectable output protocols
- Compatible with many commercially available Met/HydroMet dataloggers and PLS systems thanks to an open communication protocol
- Maintenance-free operation – no moving parts that can wear out
- Suitable for all climate zones; also for solar-powered automatic meteorological stations
- Integrated heater that can be switched on if there is danger of frost
- Parameters measured: temperature, relative humidity, air pressure, wind direction, wind speed, precipitation intensity, precipitation quantity, radiation, lightning strikes
- Measurement technology: Ultrasonic/Wind, NTC/T, Capacitive/RH/Pressure, Thermopile/Radiation, Radar/Precipitation, radio wave emission/Lightning strikes
- Product highlights: First and only compact all-in-one weather sensor with lightning detection, low power, heater, aspirated radiation shield, maintenance-free operation, open communication protocol
- Interfaces: RS485 with supported protocols UMB-Binary, UMB-ASCII, Modbus-RTU, Modbus-ASCII, XDR and optional SDI-12
