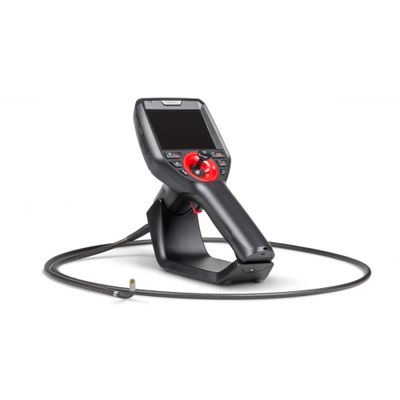

Voyager - Snake Scope with Joystick Controlled Articulation

Camera Unit, Video cable, Micro USB cable, Card reader, Caring case, MicroSD (TF) memory card, Removable Stand with magnet.

Camera:

• sensor: CMOS chip
• Resolution: 2.2mm and 2.8mm: 640x480 / 160,000 pix, 3.9mm and 6mm: 1280x720 / 1000,000 pix
• Depth of Field: 2.2mm and 2.8mm: 5-50mm, 3.9mm and 6.0mm: 8-80mm (50mm - ∞ for 6mm IR probe)
• Field of View: 2.2mm - 2.8mm: 120°, 3.9mm - 6.0mm: 85°
• Direction of View:  Straight View (Side View available for 3.9 and 6mm diameters)

Illumination:

• Type: Adjustable, High-Intensity White LEDs (Integrated)
• Average lamp lifetime: approx. 5.000 h
• Light intencity: 8,000 - 60,000 lux

Probe:

• Diameter:
• 2.2mm
• 2.8mm
• 3.9mm
• 6.0 mm
• Working length:
• 3.2 - 6.5ft
• 3.2 - 6.5ft
• 3.2 - 9.8ft
• 3.2 - 22.9ft
• Articulation type: 4-way / 360°    Joystick with "Direct Control" Mechanism
• Articulation angle (bending neck): 150° ±  10°  (120° for 9.8ft (3 meter) probes and up)
• Braid: Tungsten braided

Operating environment:

• Tip operating temperature: -4°F to 140°F (-20°C to +60°C)
• Monitor operating temperature: 14°F to 122°F (-10°C to +50°C)
• Relative humidity:  90% max. - non condensing
• Waterproof: IP67 (Probe and distal end), IP55 (Main body)

Video Imaging HUB:

• Display size: 3.5“ Color TFT LCD Sony (nonreflecting)
• LED Output Adjustment: 7 levels
• File management: Image and video playback, delete, format
• Languages: English, German, French, Spanish, Japanese
• Image control: Flip, freeze, zoom in/out
• Video format: MP4 with time and date stamp
• Image format: BMP/JPEG with time and date stamp
• Storage: microSD (TF) memory card, 8Gb
• Terminal: TF card slot, micro USB output
• Operating time: Max. 4 hours
• Battery: Rechargeable, 2200mAh, 4.2V Li-Ion battery (interchangeable)
• Scope Dimensions: 240mm X 102mm X 126mm
• Case Dimensions: 411mm X 321mm X 165mm

• 4-Way, 360 Degree Joystick Controlled Manual Articulation
• 720P HD Resolution
• 3.2ft. - 22.9ft. (1.0m - 7.0m) Working Length
• Ø 0.08" (2.2mm), 0.11" (2.8mm), 0.15" (3.9mm) and 0.23" (6mm) Probes Available
• IP67 Waterproof, Tungsten Braided Insertion Probe
• interchangeable Insertion Probes Can Be Changed in Seconds
• Pistol Grip Design with Magnetic Stand
• High-Output White LED Lights (Optional IR LED`s Available)
• Adjustable Illumination
• Integrated 3.5” Sony TFT LCD Monitor
• USB Connection
• micro SD Card Slot
• Image and Video File Capture
• Samsung Li-Ion Rechargeable Battery for Portable Use

The VOYAGER snake scope does not only provide users with access to difficult to reach places, but also delivers precise, detailed and bright footage of the inspection area with 4-way joystick controlled tip articulation. The navigation of the probe, image capture, adjusting light intensity – all these operations are made easy by means of a direct response joystick and control buttons, conveniently located right under your thumb.

Compact pistol grip design and extremely light weight enable convenient one hand operation. Besides, the videoscope runs on a rechargeable Li-Ion battery, which means you can take it with you to any site and not worry about power supply.

The system features an integrated 3.5” color TFT LCD display allowing for viewing inspection images right on site, or you can capture images, record video files to a microSD card for future reference.

Among enhanced characteristics is a removable tray with magnet, protecting the scope from physical damage and allowing for placing it on different surfaces.

The VOYAGER snake scope is a portable, compact, standalone unit that does not require the use of any additional equipment and offers intuitive, efficient operation even in challenging inspection environments.

The scope is also available with optional IR LEDs and longer focal range.
