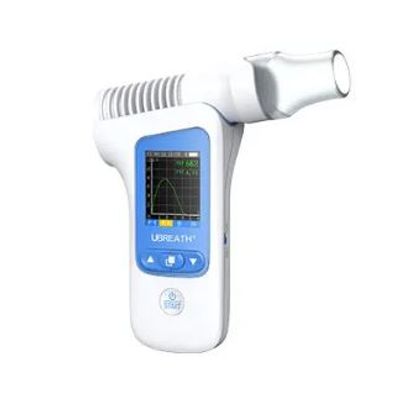

UBREATH - Model PF280 -Spirometer System

Reliable Result

• Provides 6 parameters: PEF, FVC, FEV1, FEV1/FVC, EFE50, FEF75.
• Accuracy and repeatability comply with ATS/ERS task force standardization (ISO26782:2009)
• Complies with the ATS/ERS requirement for flow sensitivity down to 0.025L/s which is a vital characteristic for the diagnosis and monitoring of COPD patients.

Portable Design

• Hand-held device and easy to operation.
• Automated BTPS calibration and free of environmental conditions influence.
• Lightweight combines the benefits of portability.
• Maintain easily and free daily Calibration.

Zero Cross-Contamination

• Assured hygiene with disposable pneumotach gives NO authority to cross-contamination.
• Patented design offers prevention and no daily sterilization is required.
• Automated quality control and correction algorithm to minimize interference from operation.

User Friendly

• Incentive graph and digital indicators displayed supports doctors’ disease quick assessment.
• Colorful range indicator allows quick assessment for better visual clarity.
• Easily connect to PC for data exchange.
• NO daily Calibration and Sterilization required.

Data Transfer

• Easily connect to PC via dedicated Bluetooth Communication Module for data exchange.
• Access to UBREATH Software for more data analysis function.

UBREATH Spirometer System(Model No. PF280)is a high-quality, easy to use, portable spirometer that delivers an ideal combination of portability, accuracy and safety. And it also helps doctor analyze the pulmonary data through V-T/F-V curve and digital indicator which is an ideal solution for the primary care, point of care, patients self-monitoring environment.

Disposable Flow Transducer

• Patented technology for Cross-contamination Prevention.
• Disposable Design and Free Sterilization and Biofilter required.
• Fool-proofing Pin design to prevent anti-plug.

Model: PF280
Parameter: PEF, FVC, FEV1, FEV1/FVC, FEF50, FEF75
Flow Detection Principle: Pneumotachograph
Volume Range: Volume: 0.5-8 L
Flow: 0-14 L/s
Performance Standard: ATS/ERS 2005 & ISO 26783:2009, ISO 23747:2015
Volume Accuracy: ±3% or ±0.050L
Power Supply: 3.7 V lithium battery
Battery Life: Approximately 500 complete charge cycles
Printer: External Bluetooth printer
Memory: 495 records
Operating Temperature: 10? - 40?
Operating Relative Humidity: ≤ 80%
Size: Spirometer: 133x76x39 mm
Weight: 135g (including the Flow Transducer)
