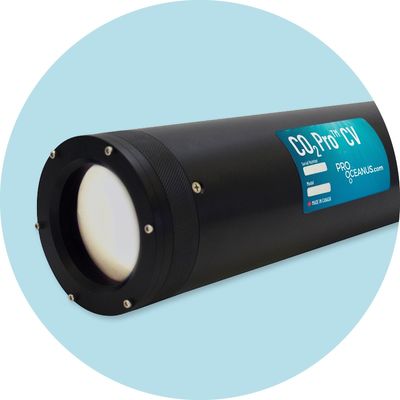

CO2-Pro - Model CV -Submersible pCO2 Sensor

The most versatile and accurate submersible sensor for monitoring pCO2, our flagship model is deployed on moorings, profilers and underway in studies of the near surface to the deep ocean.

With industry-leading pCO₂ accuracy and stability for submersible instruments, the CO₂-Pro™ CV is the sensor of choice for most applications. Labelled the CV for Compact Version of our flagship CO₂-Pro™ instrument, the Pro™-CV can be deployed to 6000 meters depth, ideal for carbon capture storage monitoring and deep ocean CO₂ fluxes.

The small size of the CO₂-Pro™ CV means it is easily transported and deployed in the field. When combined with our anti-fouling features and options, the instrument can perform in even the most biologically active rivers and lakes for extended periods of time. An internal zeroing feature provides a stable long-term baseline to ensure accurate measurements. A flow-through adapter is also available for simple integration into many systems. The CO₂-Pro™ CV is factory calibrated using WMO traceable standard gases. In addition, detector temperature stabilization and measurement of gas steam pressure and humidity provide accuracy unparalleled by other small submersible pCO₂ instruments.

• Fast response and high accuracy
• Long-term stable data for deployments of a year or longer
• Resistant to biofouling
• Real-time data output
• Large selection of concentration ranges
• External battery power available
• Internal data logger and controller with 2GB flash memory

• Ocean acidification
• Long-term ocean pCO₂ monitoring
• Deep ocean studies
• Shipboard flow-through pCO₂ measurements
• Coastal zone CO₂ fluxes

Sensor Performance

• Accuracy : ±0.5%
• Resolution : 0.01 ppm
• Zero drift : automatic zero compensation
• Equilibration time (t63) : 50 seconds (with pumped head at 20º C)
• Standard range (alternate ranges available) :
• 0-600 ppm
• 0 - 1000 ppm
• 0 - 2000 ppm
• 0 - 10 000 ppm

Physical

• Length : 38 cm (15 in)
• Diameter : 10 cm (4 in)
• Weight : Air: 2.8 kg (6.2 lbs)
• Water: 0 kg
• Housing : Acetal Plastic or Titanium
• Depth :
• 0 - 600 m (Plastic)
• Up to 6000 m (Titanium)
• Water Temperature :
• 0º to 30º C (Standard)
• -2º to 20º C (Arctic)
• 15º to 40º C (Tropical)

Electrical

• Input voltage : 10-18 VDC
• Power consumption : 3 W (9 W during warmup)
• w/ Optional Water Pump : 4 W (10 W during warmup)
• Data output : RS-232, ASCII format, 0-5 V or 4-20 mA optional
• Sample rate : 1 second (variable rate with logger/controller)
