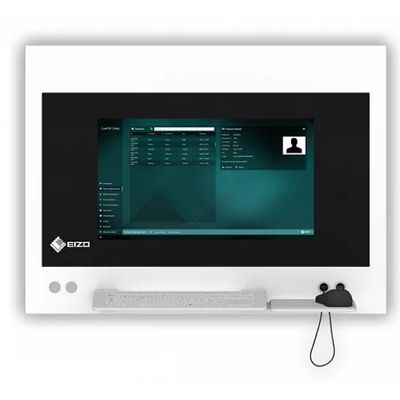

CuratOR - Model SP1-24 -Surgical Panel

• Built-in 24” monitor (touchscreen option)
• Workstation for OR nursing stuff
• Space-saving wall mounting
• High ease of service and maintanance
• Flexible choice of material, configuration and accessories
• Completely sealed within the OR and disinfectible

Customized Housing
The housing dimensions can be customized along with the combination of the powdered stainless steel and glass housing materials. Customers can select colors from the RAL palette range to suit the OR color scheme.

Intuitive Touch Operation
Every CuratOR Surgical Panels can be equipped with a touchscreen to facilitate intuitive operation of software in the OR. They are easily operated while wearing gloves for use in sterile environments.

Wide Ranging Monitor Options
The Surgical Panel are available in a wide range of screen diagonals for flexibly meeting local application requirements. The option to combine a viewing unit with a 24“ Full HD HIS workstation also offers a full viewing environment while saving on space.

Flexible IT und Video Management
The modular interior design allows customer-specific configurations and facilitates access for service and maintenance.

OR Integration and Cleanability
With its flat surface, the Surgical Panel can be completely sealed in the front and integrated in the OR wall, ensuring safety and simple cleaning and disinfection procedures. With intelligent heat distribution over the front surface, the units do not require specialized ventilation systems.

Accessories and Connectivity
Surgical Panel have front USB ports as standard for connecting peripheral devices.

Flexible Mounting Options
The device is designed for both surface or flush-mounted installation to allow easy fit into the local architectural preferences and physical circumstances on site.

Easy Maintenance and Service
The trunk design allows easy access to the device without complicated disassembly or tools. With its unique locking system, no screws need to be taken out, making maintenance procedures on the installed components simple and efficient.

General
Model Variations: SP1-24: without touchscreen
SP1-24T: with touchscreen
Certifications & Standards (Please contact EIZO for the latest information): CE, IEC/EN 62368-1, IEC/EN 60601-1-2, RoHS, WEEE, CCC
Housing

• Material: Powder-coated stainless steel
• Front: Combination of stainless steel and anti-reflective safety glass (ESG)
• Color: Available in every RAL-color
• Mounting Options: Suitable for flush mounting or surface mounting

Panel 24"

• Size: 24" (60.5 cm, 16:9 aspect ratio)
• Type: Color TFT LCD Panel
• Native Resolution: 1920 × 1080 (Full HD)
• Display Colors: 16.77 million colors
• Pixel Pitch: 0.275 mm x 0.275 mm
• Brightness (typical): 350 cd/m²
• Contrast Ratio (typical): 1000:1
• Viewing Angles (H / V, typical): 178º, 178º
• Response Time (typical): 14 ms (Gray-to-Gray)
• Backlight: LED
• Signal Inputs: DisplayPort 1.2 x 2, DVI-D single link, HDMI 1.4, HDMI 2.0 x 2, VGA

Hardware & Software Components

• Touchscreen: Projected capacitive, multi-touch (SP1-24T only)
• IT Components: INTEL® Core™ i5 processor - 3.x GHz, INTEL® Chipset, 6 MB L3 Cache, 8 GB DDR3 RAM (extendable), SATA HDD or SATA SSD, LAN RJ 45 - 10/100/1000 Base TX
• Operating System: MS Windows 10 Pro

Interface Specifications

• Keyboard / Mouse: Anti-microbial medical silicone keyboard with integrated mouse storage (foldable), silicone mouse (visual 5 keys, laser mouse /IP65)
• USB Ports: USB 2.0 / 3.0 x 2 (front side)
• Push Buttons: Main switch (front side)
• System switch (front side)

Power

• Power Consumption: 157.7 W
• Power Requirements: 100 - 240 V / 50 - 60 Hz / 4 - 2 A
• Thermal Load: 567.7 kJ/h

Physical Specifications

• Net Weight: appr. 45 kg
• Dimensions (mm): Niche (W H x D): 860 x 635 x 140
• Device (W x H x D): 850 x 625 x 120
