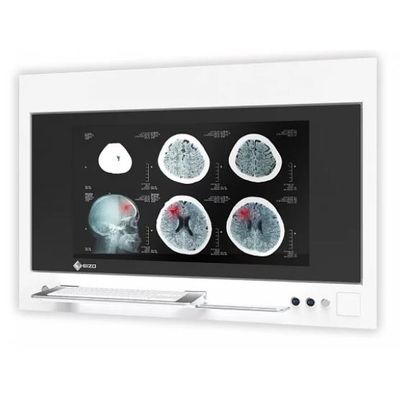

CuratOR - Model SP1-324K -Surgical Panel

• Built-in 32” monitor (touchscreen option)
• Workstation for image viewing and OR nursing stuff
• Space-saving wall mounting
• High ease of service and maintanance
• Flexible choice of material, configuration and accessories
• Completely sealed within the OR and disinfectible

Intuitive Touch Operation
Every CuratOR Surgical Panels can be equipped with a touchscreen to facilitate intuitive operation of software in the OR. They are easily operated while wearing gloves for use in sterile environments.

Customized Housing

The housing dimensions can be customized along with the combination of the powdered stainless steel and glass housing materials. Customers can select colors from the RAL palette range to suit the OR color scheme.

Optimized View Through Simple LUT Switching
Every 4K Surgical Panel is equipped with an easy-access LUT switch as standard. One of five predefined lookup tables can be selected at the simple press of a button. This allows operators to display various medical images and videos under optimal viewing settings.

Wide Ranging Monitor Options
The Surgical Panel are available in a wide range of screen diagonals for flexibly meeting local application requirements. The option to combine a viewing unit with a 24“ Full HD HIS workstation also offers a full viewing environment while saving on space.

Flexible Integrated Video Management VMbasic
A modular interior design enables customer-specific configuration. Every 4K Surgical Panel can be optionally equipped with the video management function VMbasic. Easily switch between video signals connected internally or on the front at the simple press of a button. Two further buttons allow the selection of the preset layouts and the selection of the active window.

Accessories and Connectivity
Surgical Panel have front USB ports as standard for connecting peripheral devices. There is also the option of integrating additional interfaces on the front frame. These can be individually connected to the inputs available in video management.

OR Integration and Cleanability
With its flat surface, the Surgical Panel can be completely sealed in the front and integrated in the OR wall, ensuring safety and simple cleaning and disinfection procedures. With intelligent heat distribution over the front surface, the units do not require specialized ventilation systems.

Flexible Mounting Options
The device is designed for both surface or flush-mounted installation to allow easy fit into the local architectural preferences and physical circumstances on site.

Easy Maintenance and Service
The trunk design allows easy access to the device without complicated disassembly or tools. With its unique locking system, no screws need to be taken out, making maintenance procedures on the installed components simple and efficient.

General

• Model Variations: SP1-324K: without touchscreen
• SP1-324KT: with touchscreen
• Certifications & Standards (Please contact EIZO for the latest information): CE, IEC/EN 62368-1, IEC/EN 60601-1-2, RoHS, WEEE

Housing

• Material: Powder-coated stainless steel
• Front: Combination of stainless steel and anti-reflective safety glass (ESG)
• Color: Available in every RAL color
• Mounting Options: Suitable for flush mounting or surface mounting

Panel 32" (4K)

• Size: 32" (80.0 cm, 16:9 aspect ratio)
• Type: TFT Farb-LCD Panel with DICOM Preset
• Native Resolution: 3840 × 2160 (UHD)
• Display Colors: 1.07 billion colors
• Pixel Pitch: 0.182 mm x 0.182 mm
• Brightness (typical): 450 cd/m²
• Contrast Ratio (typical): 1300:1
• Viewing Angles (H / V, typical): 178º, 178º
• Response Time (typical): 14 ms (Gray-to-Gray)
• Backlight: LED
• Signal Inputs: DisplayPort 1.2 x 2, DVI-D single link, HDMI 1.4, HDMI 2.0 x 2, VGA

Hardware & Software Components

• Touchscreen: Projected capacitive, multi-touch (SP1-324KT only)
• IT Components: INTEL® Core™ i5 processor - 3.x GHz, INTEL® Chipset, 6 MB L3 Cache, 8 GB DDR3 RAM (extendable), SATA HDD or SATA SSD, LAN RJ 45 - 10/100/1000 Base TX
• Operating System: MS Windows 10 Pro

Interface Specifications

• Keyboard / Mouse: Anti-microbial medical silicone keyboard with integrated mouse storage (foldable), silicone mouse (visual 5 keys, laser mouse /IP65)
• USB Ports: USB 2.0 / 3.0 x 2 (front side)
• Push Buttons: Main switch (front side)
• System switch (front side)
• LUT button (front side)
• VMbasic (optional):
• Video input button (front side): DisplayPort 1.2, HDMI 2.0, HDMI 1.4, VGA, DVI Single Link
• Layout button (front side): PiP, PaP, LR, TB, Quadsplit, Single
• Select button (front side)

Power

• Power Consumption: 190 W
• Power Requirements: 100 - 240 V / 50 - 60 Hz / 4 - 2 A
• Thermal Load: 684 kJ/h

Physical Specifications

• Net Weight: 50 kg
• Dimensions (mm): Niche (W x H x D): 1032.5 x 697.3 x 140
• Device (W x H x D): 1022.5 x 687.3 x 120
