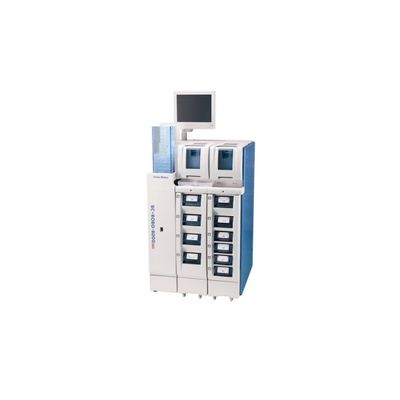

Techno Medica - Model BC・ROBO-8000RFID - Test Tube Preparation System
BC・ROBO-8000 RFID is the newest model of Test Tube Preparation System with RFID printer option.
The system produces kits with correct tubes and correct barcode labels along with a worklist.
Most popular related searches
- Item : Specification/Feature
- Available tube :
- Diameter 12-18mm
- Length 75-100mm
- Can use Rubber, Film, Plastic, none closure and urine tubes (Some unique shape tubes cannot be used)
- Throughput : 12 sec/patient when processing 4 tubes (300patient/hour)
- Drawer capacity :
- 100 tubes for big drawer
- 35-50 tubes for small drawer (depends on tube size)
- Number of empty trays :
- 20 empty trays on standby
- Walk away time:
- 4 trays for horizontal output (In case of 2 module configuration)
- 20 trays for tray stacker
- Print method : Direct thermal or Thermal transfer
- Printing
- Barcode: Code 39, JAN, Code 128A/B/C, 2of 5, NW7(Codabar) etc.
- Alpha numeric, Black & White inversion, Line and box drawing
- Rotate(90,180,270 degree)
- Black & White inversion, Line and box drawing
- Label : 50 * 30 / 50*35 mm
- Label roll set : Label Auto-loading
- Barcode Quality Control :
- Built-in barcode scanner verifies
- if labeled barcode on each tube is readable or matched with LIS or HIS data after labeling label on tube.
- Wrong tube loading detector :
- Verifies if labeled tube is correct and matched with LIS or HIS by detecting shape & color of tube cap, tube length and tube diameter.
- Software :
- Interface
- Compatible to IHE LBL, TCP/IP, RS-232C (Refer to interface protocol specification)
- Batch processing / Outpatient / Inpatient /
- Outpatient priority function / STAT patient priority function /
- Reprint function
- Adjustable labeling position to each tube
- Different label design in each tube
- Display masking function
- Statistic function
- Power : AC 100V 50/60HZ
- Power consumption : 500 VA in case of 2 module configuration
- Dimension : 745(W)*795(D)*1220mm(H) in case of 2 module configuration excluding panel PC
- Weight : 350 KG in case of 2 module configuration
- Machine appearance and specification might be changed without notice.
- Option: Bag Insert Unit, ABCT (Automatic Blood Collecting Table)
- Touch panel display, Label auto-loading function and Wrong tube loading detector realize safety, ease and accuracy.
- Modular concept with 4-30 tube type (5 modules in maximum) meets a variety of needs. Tailor made system selectable depending on customer’s operating environment and usage .
- Intelligent Carriage enhances back up function in case of sudden mechanical error.
