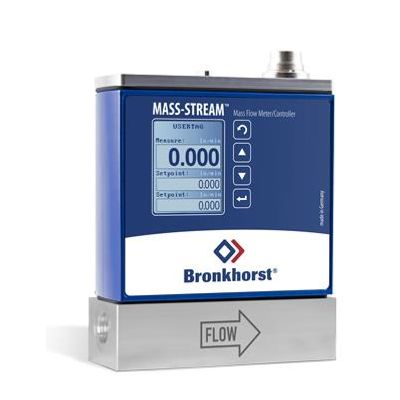

Mass Flow Online - Model MS-105 Mass-Stream 50 ln/min -Thermal Mass Flow Meter
Proven direct inline CTA sensor (no bypass). Excellent repeatability. Compact, rugged design (IP65, dust and waterproof). Very low pressure drop. Less sensitivity to humidity or dirt. With integrated multi-functional TFT display.
Most popular related searches
mass flow metering
mass flow meter
mass flow
gas mass flow metering
thermal mass flow meter
flow meter
gas mass flow meter
gas mass flow
gas flow monitoring
mass flow monitoring
Pre-installed gases
Gases: max. range
- Air, N2: 50 ln/min (= 50 SLM)
- O2: 48 ln/min (= 48 SLM)
- Ar: 100 ln/min (= 100 SLM)
- CH4: 30 ln/min (= 30 SLM)
- CO2: 54 ln/min (= 54 SLM)
With free software Bronkhorst FlowSuite you can add one of the 34 available fluids or create mixtures on to the instrument.
This way you have a multi fluid instrument for your application
The instrument can be easily hooked up to a PC by using additional cables. Read here how to hookup the MASS-STREAM to the PC
- Direct inline measurement principle
- Usable for virtually every kind of gas or gas-mix
- Mass flow measurement wide scope of applications
- Good response times
- Including calibration certificate
- Low sensitivity to dirt and humidity
- Compact and robust design
- Measurement without moving parts
- Connect the instrument to a PLC (programmable logic controller), PAC (programmable automation controllers) or DAQ (data acquisition system) with our loose end cable 7.03.191
- Modern multi-functional TFT display
- IP65 compliant
- Operator buttons on the instrument
- Customized adjustable multi-functional display: actual flow, totaliser with memory and reset, alarm, setup and much more
Measurement / control system
- Flow range: up to 50 ln/min Air
- Accuracy: ± 1,0 % RD plus ± 0.5% FS (at calibration conditions) (incl. factory calibration certificate on Air)
- Repeatability: < 0,2 % FS
- Turndown ratio: 1:50
- Operating pressure: up to 10 bar (g)
- Pre-installed gases: Air, N2, O2, Ar, CH4, CO2 + FLUIDAT Onboard
- Standard calibration gas: Air, other gases are converted using our FLUIDAT Onboard model which will introduce small inaccuracy
- Response time (sensor): approx. 0,9 sec.
- Operating temperature: 0 … 50 °C
- Leak integrity, outboard: tested < 2 x 10-8 mbar l/s He
- Attitude sensitivity: at 90° deviation from horizontal max. error 0,2 % at 1 bar typical N2
- Pressure sensitivity: ±0,3% Rd/bar typical (Air)
Mechanical parts
- Material (wetted parts): Instrument body: Aluminium EN AW-6082-T6, Sieves, rings and sensor: Stainless steel SS 316
- Process connections: BSPP female thread G1/4" (ISO1179-1)
- Seals: FKM
- Ingress protection: IP65
Electrical properties
- Power supply: +15 … 24 Vdc ±10%
- Analog output: 4…20 mA (sourcing output)
- EMC: CE / RoHS
- Digital Communication: RS232
- Electrical connection: 8 DIN (male)
- Calibration of air samplers
- Process gas measurement in food industry, chemical and petrochemical industries, in fermentation installations and in biotechnology
- 3D printing of metal products
- Gas consumption measurement for internal accounting
- Methane production in anaerobic digesters
- Oxygen supply in beer brewing process
- Surface treatment
- Test benches
- Aeration of liquids or substances
- Ratio control in burner & furnace applications
- And much more
