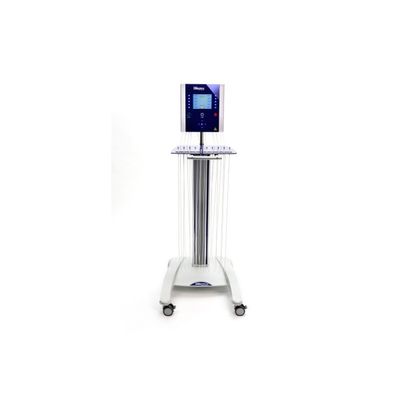

LASERNEEDLE - Touch Dental Device

The LASERNEEDLE Touch Dental comes with 7 red, 2 infrared and 1 violet lasers as well as two dental handpieces for intraoral irradiation.

The red and the infrared laser are penetrating into the different depths of the tissue, i.e. in the tmj or in open wounds. The violet laser has an antibacterial effect and destroys even multiresistant bacteria.

The dental handpieces are a handy tool for the precise and effective application of the different lasers inside the oral cavity.

• Glass front with touchscreen
• Color display for visualization and adjustment of treatment parameters
• Intuitive user interface
• Individual control of each laser channel
• Storage space for 20 treatment protocols Multilingual (German, English,
• Portuguese, French) available
• Non-wearing and easy to clean materials (glass surface, metal body)
• Own development, production, maintenance and service

• LASERNEEDLE Touch Dental with 7 red, 2 infrared and 1 violet laser
• 7 synthetical optical fibers and 3 quartz optical fibers (infrared and violet channels)
• Power adjustment
• Two dental handpieces
• 20 silicon applicators
• Pack of perforated plaster (3 rolls)
• 20 self adhesive applicators
• 2 customized LASERNEEDLE laser protection goggles
• Sample of LASERNEEDLE marketing materials

Laser classification:

• Class 3R

Number of laser channels (total of 10):

• 7 laser channels red = 658 nm
• 2 laser channels infrared = 808 nm
• 1 laser channel violet = 405 nm

Optical fibers:

• 7 regular optical fibers, length 2,1m (for red channels)
• 3 quarz optical fibers, length 2,1m (for infrared and violet channels)

Optical power (per channel):

• max 40mW

Laser power adjustment:

• 5% steps

Operation modes:

• continuous wave mode (cw mode)
• modulation (frequency mode)

Modulation frequency:

• 0 – 10.000 Hz; 1 Hz resolution

Internal memory:

• 20 customized treatment protocols

Power supply:

• 100-240 V AC/ 50-60 Hz
• 2 dental handpieces:
• 0° and 30° curved tip
