Shenzhen Bonad Instrument Co., Ltd.

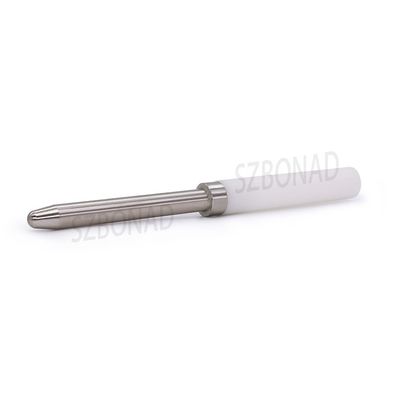

Bonad - Model PA130A - BND-TB130 -UL Rigid Test Probe
Basic Introduction:1, According to UL1278?UL1026 and UL 5072, Applicable to the apparatus structure and shell easy access to live parts of protective performance check Technical parameters1, Straight Finger Diameter:12.7mm(1/2 inch)2, Straight Finger Total Length:101.6mm(4 inch).
Most popular related searches
Basic Introduction:
- According to UL1278?UL1026 and UL 507
- Applicable to the apparatus structure and shell easy access to live parts of protective performance check
Technical parameters
- Straight Finger Diameter:12.7mm(1/2 inch)
- Straight Finger Total Length:101.6mm(4 inch)
- The Head Length:14.3mm(9/16 inch)
- The Head Radius: R 4.8MM(3/16 inch)
- The Tail Diameter:19.1mm(3/4 inch)
- According to UL507(135A)?UL1026(PA130A) ?UL1278(PA130A
