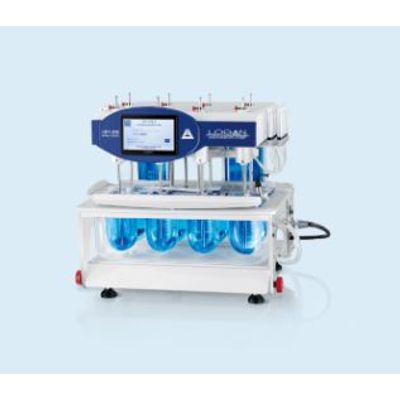

LOGAN - Model UDT-818-8 - Universal Drug Dissolution Tester for Pharma R&D
Logan`s Universal Dissolution Tester is a sophisticated instrument designed for pharmaceutical research and development, as well as quality control applications. It supports USP Apparatus 1, 2, 5, and 6, offering a range of configurations from 8 to 18 vessels, both in manual and automated forms. The automated systems, manufactured in the USA, streamline the dissolution process by coordinating all stages via computer control, negating the need for water baths and minimizing user involvement. These systems include precise syringe pumps, ensuring accurate sampling and reducing human errors. They also feature tight vessel seals to minimize media evaporation and have individual temperature sensors for each vessel, allowing precise monitoring and recording. This design focuses on enhancing the efficiency and accuracy of drug research and the evaluation of generic drugs.
- Compatible with 1 L, 2 L, 4 L, and small volume vessels
- Expandable to 2 or 3 speed zones
- Compatible with basket, paddle, paddle over disk, and rotating cylinder USP apparatus types
- Includes infinity test programming
- Compatible with the Logan PERMETRO™ system for bioavailability and pilot BE studies
- Compatible with automated sampling system
- The autosampler uses a precision syringe pump with dedicated syringes per vessel position, to ensure no cross contamination
- Use up to two wash media sources for automated tubing cleaning post-test run
- Support on-line UV
- Optional individual automated digital temperature probes in each vessel for better temperature monitoring
- Dual vessel cover design eliminates media evaporation
- Optional remote monitoring system for mobile devices
- Compatible with 1 L, 2 L, 4 L, and small volume vessels
- Expandable to 2 or 3 speed zones
- Compatible with basket, paddle, paddle over disk, and rotating cylinder USP apparatus types
- Includes infinity test programming
- Compatible with the Logan PERMETRO™ system for bioavailability and pilot BE studies
- Compatible with automated sampling system
- The autosampler uses a precision syringe pump with dedicated syringes per vessel position, to ensure no cross contamination
- Use up to two wash media sources for automated tubing cleaning post-test run
- Support on-line UV
- Optional individual automated digital temperature probes in each vessel for better temperature monitoring
- Dual vessel cover design eliminates media evaporation
- Optional remote monitoring system for mobile devices
- Perform comparative dissolution studies, generic vs. innovator, in the same environment
- Built-in heater-circulator for uniform temperature control
- Manual or automated sampling
- Dual filtration supported: sample probe pre filter followed by in-line syringe filteration
- Tablet dropping tray simultaneously dispenses dosage into each vessel
- Storage compartments for paddles and baskets
- Backlit LED lighting for easy visual observation of the dissolution process
- Stores up to 100 methods
- Three security levels and full audit trail
- 21 CFR Part 11 tools, USP, ASTM, EP, JP, CP compliant
UDT-818-8 is a 8-Positions Dissolution Tester that is suitable for USP Apparatus 1,2,5 & 6. It is used for drug research and development, as well as for the dissolution evaluation of generic drugs.
