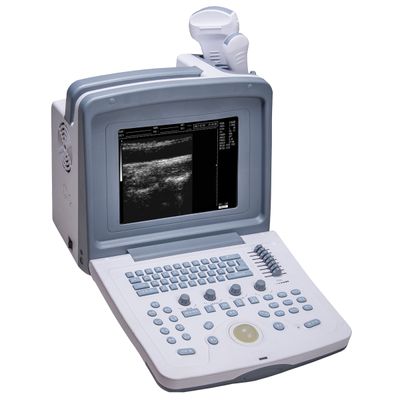

Welld - Model WED-9618V -Vet B-Ultrasound Diagnostic System
WED-9618 adopts multiple technologies such as micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization (DRA), real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS) which can display a high quality, stable and high resolution image. The external Video printer and external monitor display can be realized with the PAL-D Video output port. All the ultrasound images can download to PC with high speed USB 2.0 port. Various image processing software packages are available.
Most popular related searches
- Scanning Model: Electronic Linear Array, electronic convex array
- Cine-loop: ≥400 frames
- Image Storage: ≥32 frames
- Display Depth: ≥250mm
- Scanning Angle: Visible and adjustable
- Display Mode: B, B+B, B+M, B+M/M, M, and 4B
- Operation Interface: Chinese/English switchable
- TGC Adjustment: Near Field, Far Field, Total Gain Independent Adjustment
- Focus Control: Focus Number, Focus Distance, Focus Position Adjustment
- Image Processing: Image Black/White, Gamma Correction, Edge Enhancement and Histogram
- External Ports: External Ports: Video port, RS-232 port and USB port
- Measurement: Distance, Perimeter, Area, Volume, Obstetrics (GA measurement for horses, cattle, sheep, pigs, cats and dogs etc.)
- Real-time Depth: 16 levels are adjustable
- Zoom: ≥2 times
- Vet Endo-rectal Linear Probe
- Vet Micro-Convex Probe
- Vet Abdominal Convex Probe
- Vet High-frequency Linear Probe
- Application Software (Disk)
- High-speed USB connection cable
- Video Printer
- Trolley Cart
- Probe Holder
- Power Cable
- Gel
- For clinical diagnosis of horses, cattle, sheep, pigs, cats, dogs and other animals.
