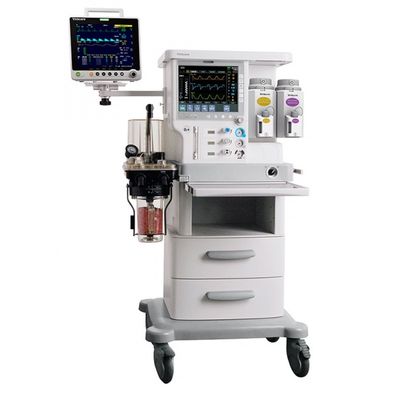

Ruiomed Vetcare - Model Gavet-800 -Veterinary Anesthesia Workstation

Precise Tidal Volume Control Technology

• Under the volume-controlled ventilation mode, the minimum tidal volume down to 10ml, which make the anesthetic procedure safer.
• Adopt the advanced solenoid valve to ensure accurate and stable control of fresh gas and drive gas.
• Advanced sensor technology, real-time tidal volume monitoring and feedback system, ensuring the accurate output of tidal volume.

Ergonomic Design

• 12. 1"HD LED monitor, offering high definition screen with parameters display;
• Intuitive operation and efficient interaction;
• upports up to 2 vaporizers, compatible with Vetcare vaporizers and other popular brands Selectatec shangbiaovaporizers;
• The standard overhead light is suitable for all kinds of endoscopic surgery.

Powerful and High-quality Ventilation

• Gavet-800 applies first-class gas control system, popular brands’ solenoid valve and active expiratory valve to achieve accurate and stable gas control, ensuring the high-quality performance of breathing modes.
• Gavet-800 has reliable ventilation and more ventilation modes: VCV, SIMV-VC, SIMV-PC, PCV, PSV, PRVC. etc
• Minimum Tidal volume: 10ml
• Various modes of VCV, P-mode, PCV, SIMV-VC/PC, HLM, PSV, PRVC
• Self adaption figure display
• Perfect Tidal Volume compensation methods
• Real-time dynamic Tidal Volume compensation
• Compliance compensation

PCV

Adopting high-quality proportional solenoid valve and active expiratory valve, the flow rate can be adjusted automatically. With precise pressure control technology, avoiding lung injury of animals. It meets the needs ofthe ventilation of small and medium-sized animals, making the operation more safe.

SIMV-PC

• Used for the ventilation during the anesthesia induction and postoperative an esthetic period. It can avoid patient-ventilator asynchrony, ensuring the safety of animals.

PSV

The auxiliary ventilation mode, which is completely activated by the animal and switched automatically, making it more suitable for the animal. The adjustable pressure and flow rate trigger completely eliminate the patient ventilator asynchrony, ensuring the animal`s autonomous respiration is more natural.

PRVC

Combining the advantages of PCV and VCV mode, PRVC mode brings a new experience. On the basis of ensuring the preset tidal volume, the ventilator continuously monitors the compliance, and gradually adjusts the pressure to avoid the injury of lungs. The ventilator ventilates with the lowest airway pressure and reach the preset tidal volume.

ACGO

• Simultaneously equipped with rebreathing and non-rebreathing circuit systems, the ACGO(auxiliary common gas outlet) switch design allows the system can be shifted by only one toggle.
• Gavet-800 can realize the oxygen concentration monitoring so that assurethe security under ACGO.

Rich Monitoring Parameters

• Complete monitoring parameters
• Tidal volume, Minute Volume
• Waveforms: Pressure-Time, Flow-Time and Volume-Time
• Pressures: Ppeak, Pflat, Pmean
• PEEP
• Optional: FiO2, SpO2, Loops, ETCO2 and AG, etc.
• Real-time values and waveforms of flow velocity, volume and pressure.

Electronic Breathing Circuit System

• Fully integrated and compact breathing circuit that eliminate risk of gas leakage and allow quick switch between auto and manual ventilation;
• Using thermostatic heating technology, the circuit temperature maintains 35-40?, which effectively reduce the condensed water;
• The rebreathing circuit adopts heat-resisting material that is 134? autoclavable, avoiding inter-cross infection;
• By-pass design, convenient for changing the CO2 absorber during operation;
• The automotive alarm system could prevent the improper installation of absorber.

Innovative CO2 Absorber Change Way

• Adopting an advanced and convenient way, solving the troubles caused by traditional installation.

AG Monitoring

• Adopting Masimo gas monitoring technology, automatically identify five anesthesia gas concentration, CO2 concentration and MAC.

Accurate vaporizer

• Enflurane/lsoflurane/Sevoflurane Vaporizer with flow, temperature and pressure compensation that can accurately output during operation. Compatible with Vetcare vaporizers and other popular brands Selectatec® mounting vaporizers
