Shenzhen Ruio Medical Technology Co., Ltd.

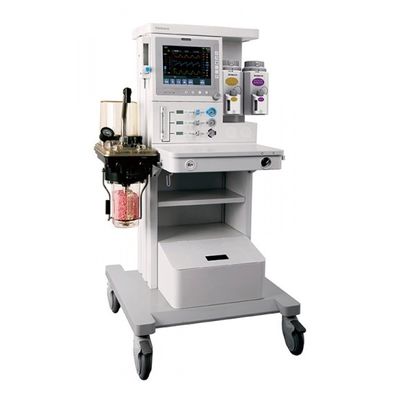

Ruiomed Vetcare - Model Gavet-300 -Veterinary Anesthesia Workstation
Safe and Reliable Anesthesia Machine: As a middle-end an esthesia machine, Gavet-300 applies advanced gas control system to ensure the stability of ventilation. Rich monitoring parameters and electronic alarm system ensure the safety during operations. Compact and concise design to save much space in the operating room. Application: all kinds of operating rooms.
Most popular related searches
anesthesia workstation
operating room
breathing circuit
airway pressure
anesthesia machine
operating room ergonomics
breathing system
Ergonomic Design
- 10.4”LED monitor with parameters display;
- Intuitive operation and efficient interaction;
- Supports up to 2 vaporizers, compatible with Vetcare vaporizers and other popular brands Selectatec® mounting vaporizers.
Fresh gas electronic transmission technology
- 0.05L/min. The flow number could be detected quickly and precisely.
Powerful and High-quality Ventilation
- Gavet-300 applies top-ranking brands’ gas control system, popular sensor technology and rational Tidal volume compensation way to perform precise and stable ventilation, ensuring the accurate control of Tidal volume.
- Minimum Tidal volume: 20ml
- Various modes of VCV, P-mode, PCV, SIMV-VC/PC
- Complete monitoring parameters:
- Tidal Volume, Minute Volume
- Waveforms: Pressure-Time. Flow-Time and Volume-Time
- Pressure: Ppeak, Pplat, Pmean
- PEEP
- Optional: FiO2, SpO2, Loops, EtCO2 and AG, etc.
- Real-time values and waveforms or flow velocity, volume and pressure self-adaption figure display
- Perfect Tidal Volume compensation methods:
- Real-time dynamic Tidal Volume compensation
- Compliance compensation
ACGO
- Simultaneously equipped with rebreathing and non-rebreathing
- circuit systems, the ACGO(auxiliary common gas outlet) switch
- design allows the system can be shifted by only one toggle.
- Gavet-300 can realize the oxygen concentration monitoring so
- that assure the security under ACGO.
Comprehensive Monitoring
- Gavet-300 provide:
- real-time VT, Airway pressure, Compliance;
- waveforms: flow, volume and pressure;
- Optional: oxygen concentrations, SpO2, EtCO2, etc.
Electronic Breathing Circuit System
- Fully integrated and compact breathing circuit that
- eliminate risk of gas leakage and allow quick switch
- between auto and manual ventilation;
- Using thermostatic heating technology, the circuit
- temperature maintains 35-40℃, which effectively reduce the condensed water;
- The rebreathing circuit adopts heat-resisting material that is 134℃ autoclavable, avoiding inter-cross infection;
- By-pass design, convenient for changing the CO2 absorber during operation;
- The automotive alarm system could prevent the improper installation of absorber
High-precision Vaporizer
- Enflurane/lsoflurane/Sevoflurane Vaporizer with flow,
- temperature and pressure compensation that can
- accurately output during operation.Compatible with
- Vetcare vaporizers and other popular brands
- Selectatec® mounting vaporizers.
Integrated Scavenging System
- To remove waste anesthesia gases from the operating
- room effectively, Ruio develops a more safe and reliable
- integrated scavenging system.
