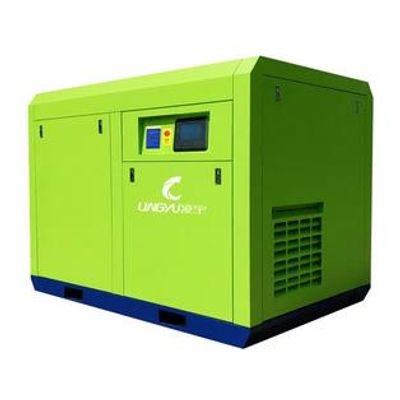

Lingyu - Model SS304 -Water Injected Oil Free Screw Air Compressor for Food & Pharmaceutical Industries
Water injected screw compressor is an oil free screw air compressor. It uses water as a lubricant. We are oil free screw compressor manufacturer. Because of water, there is 100% no oil vapors in compressed air. So it has wid applications for sanitary industries. For example, we usually use it for food and pharmaceutical industries. Compared to normal oilless air compressor, it has many advantages. For instance, it has low noise. Besides, the discharge temperature is not high.
- Machine Name: Water injected oil free rotary screw air compressor
- Compressed Air Status: 100% oil-free
- Voltage: 380V/50HZ/3P, 220V/50HZ/3P,400V/50HZ/3P, 415V/50HZ/3P, or 60HZ, or custom
- Working Pressure: Normal pressure: 3 bar, 8 bar, 10bar, (high pressure customizable)
- Compressor Power: 7.5 KW, 11 KW, 15 KW, 18 KW, 22 KW to 250 KW
- Air Delivery: 0.8m³/min to 40m³/min @10 bar
- Air Compressor Noise: 60dB(A) to 85dB(A)
- Type of Driving: Direct driven
- Type of Cooling: Air-cooled or water-cooled
- Sanitary Material: 304 stainless airend, piping and tank
- Compressor Airend: Single-screw airend
- Application:: Pharmaceutical, Food, Medical, Beverage, Oxygen&Nitrogon, Precision machine tools
Why choose our oilless screw compressor?
Long lifetime full 304 stainless steel single-screw airend
Oil-free airend adopts PEEK rotor. The rotor and other components are all 304 stainless steel. So ensure that the air oil content is grade 0. Our airend production process comes from Japan. Besides, we use original SKF bearings.
Compression volume ratio of our oil free screw air compressor ≥ 95%. The design service life is 15 years. It can run continuously 24 hours a day. Moreover, the structure is good. Thus the vibration is small.
There are two star wheels on both sides of the screw. So water injected screw compressor has no unbalanced inertial force. And the axial force and radial force on the screw also cancel each other out.
Completely oil-free air quality
Oil free screw compressor replaces oil with water. So there are 4 major benefits. That is, lubrication, cooling, sealing and noise reduction. Provide high quality 100% oil-free air. No pollution. The discharged water also does not need special treatment.
It is an ideal isothermal compression due to the action of water. Compared with dry oil free compressor, the air volume increases by 15%.
Superior electrical control system
Each air compressor has a microcomputer control system. Moreover, it’s with self-diagnosis and protection functions. The panel can display the actual operation of water injected screw compressor.
If compressor fails, the system will respond accordingly. So the user can replace parts in time. With 485 interface, it has remote control. Therefore, it guarantees safe operation 24 hours a day.
Energy saving permanent magnet variable frequency motor
40,000 hours working without failure. Free maintenance. High starting torque. Direct drive.
304 stainless steel air and water separation tank
The separation tank and piping also use the SS304. So there will be no corrosion.
Pure copper radiator
Air-cooled oil free screw air compressor uses the copper radiator. So the heat dissipation is stable and efficient. And it is with a silent fan.
Power-saving air capacity adjustment
When the air consumption decreases, the system pressure starts to increase. The controller receives the signal. It begins to gradually reduce the opening of the intake valve. At this time, the air flow volume of oil free screw air compressor will also decrease. Of course, the motor current will also drop.
Conversely, when the gas consumption increases, the system pressure begins to drop. The opening of the intake valve will increase. At this time, the air flow of water injected screw compressor will also increase.
High efficiency
Lubricating water can absorb a lot of the heat of compression. So it improves compression efficiency. Besides, water can achieve air tightness. Thus, the efficiency of oil free screw compressor is high. It’s better than general dry screw compressors.
In addition, the specific heat of water is large. The working process is similar to isothermal compression. Theoretically there is no clearance volume. The compression chamber temperature can be lowered to close to the intake temperature. So it can reduce the work load of refrigerated air dryer.
Low noise
The motor is directly connected with the screw. So there is no intermediate transmission gear. In addition, lubricant water can also reduce the noise caused by high-frequency compression.
Moreover, the oilless screw compressor has a superior power balance system. It can effectively restrain the vibration source.
Oil free compressed air
Water injected compressor is common oil free screw air compressor. It doesn’t use the lubricant oil. So compressed air is 100% free of any oil.
Furthermore, the drained water is also oil-free. So no need special treatment. It meets environmental requirements.
- Machine Name: Water injected oil free rotary screw air compressor
- Compressed Air Status: 100% oil-free
- Voltage: 380V/50HZ/3P, 220V/50HZ/3P,400V/50HZ/3P, 415V/50HZ/3P, or 60HZ, or custom
- Working Pressure: Normal pressure: 3 bar, 8 bar, 10bar, (high pressure customizable)
- Compressor Power: 7.5 KW, 11 KW, 15 KW, 18 KW, 22 KW to 250 KW
- Air Delivery: 0.8m³/min to 40m³/min @10 bar
- Air Compressor Noise: 60dB(A) to 85dB(A)
- Type of Driving: Direct driven
- Type of Cooling: Air-cooled or water-cooled
- Sanitary Material: 304 stainless airend, piping and tank
- Compressor Airend: Single-screw airend
- Application:: Pharmaceutical, Food, Medical, Beverage, Oxygen&Nitrogon, Precision machine tools
