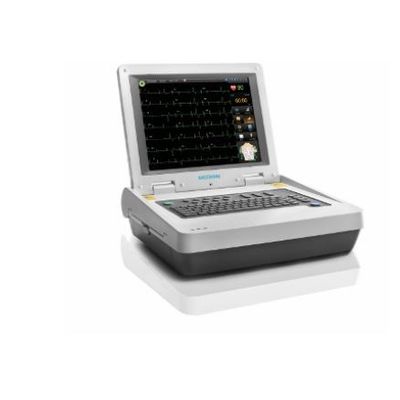

Dixion - Model 1018 -Workstation ECG System

• All-lead (18/15/12/9-lead) ECG workstation
• 15” touch screen
• waterproof alphanumeric keyboard
• interface – VGA, USB, and SD card slot
• 18/15-lead Resting ECG for MI Diagnosis
•  12-lead Standard Resting ECG
•  9-lead Resting ECG Specially Designed for Neonates
•  Pharma Study
• Vector ECG & Timed Vector ECG (VCG&TVCG)
• Signal Average ECG (SAECG)
• Heart Rate Variability (HRV)
• ST-view function  (Intuitive Display of ST-segment)
• Auto Arrhythmia Detection
• On-screen Diagnosis

Lead: 18 standard leads
Acquisition Mode: 18 leads acquisition simultaneously
Time constant: ≥3.2s
Frequency Response: 0.01Hz ~ 300Hz (-3dB)
Sensitivity: 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, 10/5mm/mV, 20/10mm/mV, AGC
Input Impedance: ≥50MΩ (10Hz)
Input Circuit Current: ≤0.01μA
Noise Level: ≤12.5 µVp-p

Filter:

EMG-Filter: 25Hz/35Hz/45Hz/Off
DFT-Filter: 0.01Hz/0.05Hz/0.32Hz/0.67Hz
AC-Filter: 50Hz / 60Hz /Off
LOWPASS-filter: 300Hz / 270Hz / 150Hz / 100Hz / 75Hz

CMRR:  ≥123dB (AC Off)
HR Range: 30 bpm ~300 bpm; Accuracy: ±1 bpm
Safety Standarts: IEC 60601-1:2005/A1:2012 EN 60601-1:2006/A1:2013; IEC 60601-1-2:2014 EN 60601-1-2:2015 IEC 60601-2-25:2011 EN 60601-2-25:2015
Power Supply: Operating voltage =100V–240V~ ; Operating frequency = 50Hz / 60Hz
Built-in Li Battery: Rated voltage = 14.8V, Rated capacity = 5000mAh; 100% Charge time:6 hours; When the battery is fully charged, ECG 1018 can work normally about 6 hours, and it can continually print about 3 hours in the manual mode or print about 250 ECG reports of 6×3+1R in the AUTO mode.

Recorder: Thermal dot-matrix recorder
Printing density: 8 dots per mm / 200 dots per inch (amplitude axes)
40 dots per mm / 1000 dots per inch (time axes, @ 25 mm/s)
Record paper: Folded thermal paper:
210mm×295mm×100pages

215mm×280mm×100pages

210mm×295mm×200pages

Paper speed: 5; 6.25;10;12.5;25;50mm/s ± 3%
Dimension: 438mm×395mm×135mm, ±2mm
Weight: 9.5kg,±0.3kg (Excluding recorder paper and battery)
Display: 15”, 1024×768 multicolor LCD Screen
