What can CT Lab HV do?

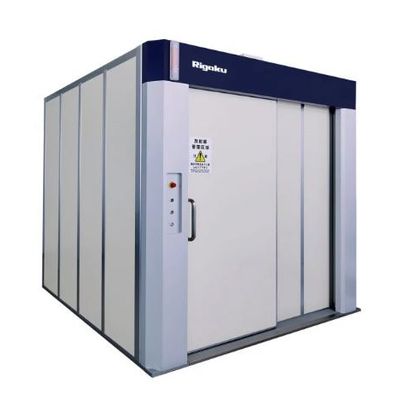

Rigaku CT Lab HV is a high-resolution and high-voltage industrial X-ray CT (computed tomography) scanner. The CT Lab HV and our unrivaled technical support will help you:

• Clearly see if you made your products exactly as designed by scanning them non-destructively, allowing you to compare them with the design and identify discrepancies quantitatively.
• Clearly see where the problem is when your products are failing by creating a digital twin (CT scan of your product) that allows you to visually inspect the internal structures or run virtual tests such as flow and stress simulations.
• Clearly see inside precious parts and objects non-destructively by scanning objects such as historical artifacts or expensive prototypes.

How can I achieve high resolution?

Rigaku CT Lab HV uses the cone-beam geometry. This geometry uses the X-ray beam divergence to magnify the sample image. The magnification factor is determined by the ratio of SOD (source-to-object distance) and SDD (source-to-detector distance). A wide range of SOD and SDD allows a CT scanner to adjust the resolution and FOV (field of view).

By reducing SOD and increasing SDD, you can clearly see details in high resolution up to true 3-micron spatial resolution. For high-density materials, such as metals, a high-voltage X-ray source helps reduce beam hardening artifacts to further improve the image quality.

How do I achieve 350 mm FOV?

The CT Lab HV’s large radiation enclosure, wide door opening, and variable X-ray source height, sample position, detector height and position enables the ultimate flexibility to accommodate large samples up to 600 mm in diameter ×1200 mm in height with up to 350 mm FOV.

How can I set up tests for my experiment and inspection procedures?

However clear CT images you might obtain from your scanner, the interpretation of CT data and qualification of scanned products are not always straightforward. Without proper optimization, data analysis alone can take a long time when you need the results fast.

All CT Lab HVs come with in-person training at your facility to ensure you are comfortable with collecting data and analyzing your own samples. Our experts will continue to provide technical support to help you set up your inspection procedures for the lifetime of your CT Lab HV.
