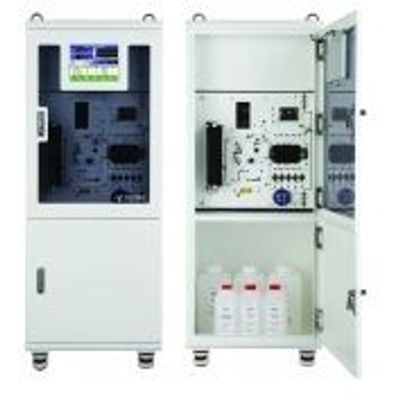

Model V TN/TP -Oniline Water Monitor

• System Component
• Electric control & PC, S/W section,  Analysis section,  Reagent supply section
• Analysis Time
• Max. 40min, TN ( Total Nitrogen ) / TP ( Total Phosphorus)
• Analyze 1 parameter individually or 2 parameters simultaneously
• Analysis Range and Detection Limit
• TN :  0 – 5 mg/L,   0 – 10 mg/L         0.03 mg/L
•         0 – 20 to 0 – 100 mg/L
• TP :  0 – 1 to 0 – 2 mg/L                0.005 mg/L
•         0 – 4 to 0 – 20 mg/L
• Analysis Principle
• TN :  K2S2O8 heated UV-Digestion and Cd-cu reduction, measure at 550 nm by UV-spectroscopy
• TP :  K2S2O8 heated UV-Digestion and Molybden blue reaction, measure at 550 nm by UV-spectroscopy
• Relating Official Method
• Korea Water Pollution Process Testing Method, year 2010

Features

• Patent registered No.  10-0875629 by Air Segmented Continuous Flow Analysis
• Possible for any combination of two parameters in one system such as TN /TP, TN / Ammonia, TN / Nitrate, TP / Phosphate, Ammonia / Silicate, etc
• Using single or double channel High Performance Process Spectrophotometer
• Adopted to worldwide officially approved method ( JIS, EPA, AOAC, KS )
• Fulfill relatively low detection limit compared to other monitoring instruments
• Providing appropriate method applicable to both Seawater & Normal water

Application

Waste / Sewage water,  River / Dam / Lake water,  Potable water,  Seawater,  Process and Boiler water
