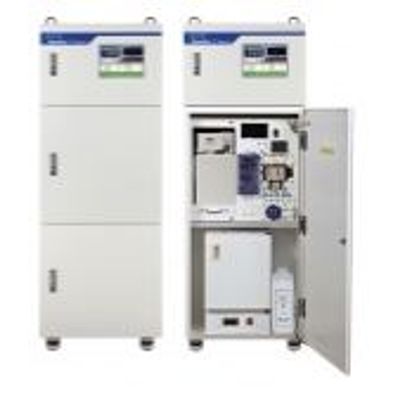

Model V Distillation (Phenol / CN / F) -Oniline Water Monitor

• System Component
• Electric control & PC, S/W section, Analysis section, Reagent supply section, Distillation Unit
• Analysis Time
• 15 to 20 min Max.
• Analysis Range and Detection Limit
• Phenol :    0 – 0.2  to  0 – 2 mg/L 0.005 mg/L
• Cyanide :   0 – 0.05  to  0 – 2 mg/L 0.001 mg/L
• Fluorine :   0 – 1  to  0 – 10 mg/L  0.02 mg/L
• Distilled-Ammonia :  0 – 1  to  0 – 5 mg/L 0.02 mg/L
• Analysis Principle
• Phenol - Distillation of Phenol under 145 ℃ and the subsequent reaction of the distillated with alkaline ferricyanide and 4-aminoantipyrine to form a red complex which is measured colorimetrically at 505 nm
• Cyanide - Converted to cyanogen chloride by reaction with chloramine-T which subsequently reacts with pyridine carboxylic acid to give a blue colored complex. In the case that metallic cyanides have to be assayed, 145℃ distillation stage and 60℃ heating procedure are incorporated measuring at 630 nm
• Fluorine - Distillated at 145℃ with sulfuric acid and the distillate react with lanthanum-alizarin to from blue complex measured at 630 nm
• Distilled Ammonia - Distillation Step with 120℃ is required, after distillation, alkaline phenol and hypochlorite react with ammonia to from indophenol blue complex measured at 630 nm
• Relating Official Method

                     Korea Water Pollution Process Testing Method, year 2010

• Patent registered No.  10-0875629 by Air Segmented Continuous Flow Analysis
• Possible for any combination of two parameters in one system such as TN / TP, TN / Ammonia, TN / Nitrate, TP / Phosphate, Ammonia / Silicate, etc
• Using single or double channel High Performance Process Spectrophotometer
• Adopted to worldwide officially approved method ( JIS, EPA, AOAC, KS )
• Fulfill relatively low detection limit compared to other monitoring instruments
• Providing appropriate method applicable to both Seawater & Normal water

Application
Waste / Sewage water,  River / Dam / Lake water,  Potable water,  Seawater,  Process and Boiler water
