Channel Networks - Portable Measurements solutions for flow measurement to create a sewage master plan - Water and Wastewater - Water Monitoring and Testing
FromNIVUS GmbH

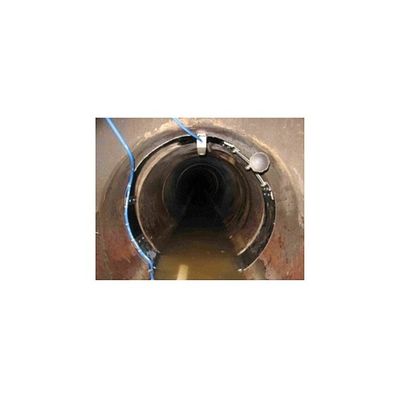

Application: Concrete pipe DN 500. Part filled. High discharge dynamics. Risk of sedimentation.
Most popular related searches
concrete pipe
level sensor
flow detection
water monitoring
flow monitoring
sewage
wastewater monitoring
water testing
sewage water
precipitation detection
- Detection of precipitation, flow, level and flood covering a minimum period of 3 months to create a Sewage Master Plan
- No mains power available
- High discharge dynamics from lowest levels up to complete flood of the channel system
- Sound waves due to pump activities
- ASCII a preferred data format
- By using the portable Type PCM Pro measurement system using multiple sensors it is possible to measure over longer periods without mains power.
- The high measurement dynamics are reliably detected by using a 1-minute measurement cycle.
- Data storage on CF card in ASCII format.

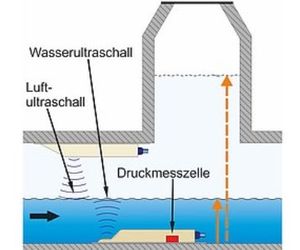

- Accurate flow detection even with varying levels thanks to the combined use of different level sensors utilising different measurement principles.
- Measurement results are easy to evaluate in all common applications thanks to using the standard ASCII data format.
