DZ Medicale products

The Bed Head Unit “Girasole”, for lighting and medical gas systems, is built with an extruded aluminum profile and subsequently painted with non-toxic white paint. The lighting and electrical composition can be widely customized, and includes ambient lighting, for reading and visiting, and night lighting, a light point suitable for night rest.

The "Viola" bed head model is intended for lighting and possibly integrated with hospital services (call nurses, data sockets and telephone) differs from the sunflower model due to the absence of medical gases.

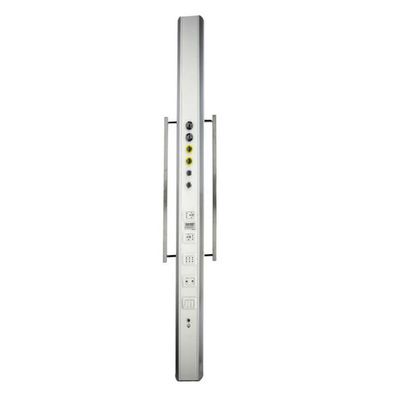

The vertical Bed Head Units are particularly in demand in patient rooms in medical clinics, where a central unit can serve two beds. Depending on their purpose, these units are equipped with medical gas outlets, high voltage and low voltage distribution of electricity, media sockets etc.

The I.C.U. model it is specially equipped for the intensive care unit area. The model usually carry two or three line of electrical outlets, were each group is feeded by a separate electrical line. Also the medical gas area is more complete than in the standard care unit.

The automatic change over manifold is suitable for reduction and interception of the gas normally used in the laboratory. The device guarantees the real autonomy, totally independent from the human intervention. The central decompression unit ensures a stable flow able to satisfy most of the needs of the project, ensuring a flow not less than 20 Nm ³ / h @ 800 kPa. The quality of the components is guaranteed by careful controls in phase of acceptance and is guaranteed by compliance with company procedures reffered to the UNI EN ISO 9001: 2008.

Area interception valves are generally used in single-stage or downstream distribution systems of reduction groups in stage II distribution systems. Usually equipped with an interception valve, a maintenance power and emergency point, a at the state, complete their function equipped with an emergency clinical alarm system.

The gas outlet is a medium-pressure device with anti-return that allows the power of a 2nd stage gearbox, a faucet or a measuring tool. It must allow the supply of the expected gas without exceeding the permitted loss of load. The brass or stainless steel gas outlets made from a bar have a dice-ending anti-return with 3/8″ Gas thread characteristics, right-handed threading for combustible and inert gases and left-handed threading for combustible gases. The entry fittings are in Girolok, or 6 or 10 depending on the requirements. The round shutter opens when a 2nd stage gearbox or faucet is screwed on the exit fitting die. A label allows you to permanently identify the socket with the indication of: gas name, chemical symbol.

For some years, in parallel with the manufacture of devices, we have decided to complete the company offer, perfecting our services aiming at improving customer satisfaction starting from the design, installation, expansion and adaptation and maintenance of the same systems, marking the product in compliance to Directive 93/42 / EEC and ss. mm. relating to medical devices.We develop management, optimization and maintenance plans for medical and technical gas systems following free inspections.
