The Bosworth Company

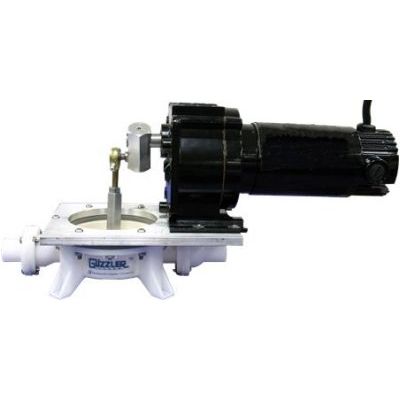

Guzzler - Model GE-0403N - 12 VDC Motorized 2400 Pump
FDA-approved components. Suitable for food processing, pharmaceutical or biomedical applications.
Most popular related searches
pharmaceutical process
pharmaceutical processes
pharmaceutical processing
pharmaceutical biomedical
biomedical
pharmaceutical application
mounting ring
- FDA-approved components for parts in contact with fluid
- 12 VDC permanent magnet motors with speeds from 23 to 94 rpm
- 2.5 gpm - 10.3 gpm
- Accommodates 1/2" - 1" hose
- Ideal for pharmaceutical, food processing or biomedical applications1/2" - 1" hose
- Max Pressure Range: 7 - 15 psi / 0.48 - 1.03 bar
- Lift/Head Range: 16.0 - 20.0 ft / 4.9 - 6.1 m
- Capacity Range: 2.5 - 10.3 gpm / 9.5 - 39.0 lpm
- Volume per stroke: 0.44 qt / 0.42 l
- Max Service Temp: 150° F / 66° C
- Speed Control: None
- Valves: Flapper (White Buna)
- Diaphragm: Silicone
- Clevis Button Assembly: SS Washer & Aluminum Clevis
- Clamp Ring: Motor Mounting Plate
- Inlet Hose Connection: 1" Smooth
- Outlet Hose Connection: 1" Smooth
- Motor Options: 12VDC, rpm: 64, torq: 150 in-lbs | psi: 10, head (ft): 23
- Pre-Pak Accessories: Not selected
- Body & Ports * Natural (Pigment-free) Delrin / White
- Clamp Ring Aluminum Motor Mounting Plate
- Valves * Flapper (White Buna), Umbrella (Silicone**)
- Diaphragm * White (pigment-free) Silicone
- Clevis/Button Assembly * SS Washer + Aluminum Clevis
- Motor 12 VDC 1/6 HP
