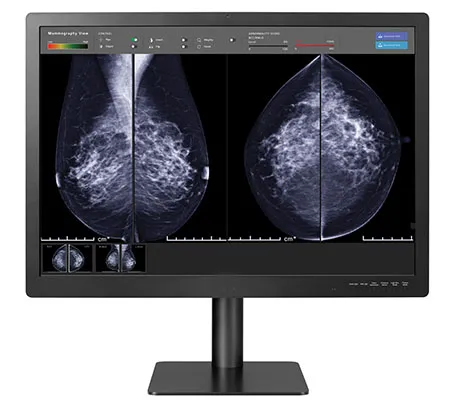

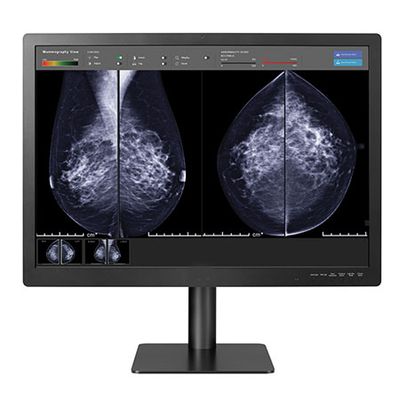

Double Black Imaging - Model Gemini Series - 12MP Large Format Diagnostic Monitor
Double Black Imaging's Gemini Series 12MP Large Format Diagnostic Monitor is a 12-megapixel color LED backlit LCD designed to enhance productivity in multi-modality imaging, such as Digital Breast Imaging. This monitor features increased resolution and eliminates the gap between screens in multi-head display setups. It incorporates auto-calibration technology for consistent, high-quality diagnostic images, with high brightness and contrast ratios. The C12MPG model includes built-in front sensors for hands-free automatic DICOM 3.14 calibration, backlight, and ambient light sensors for long-term accuracy and stability. Additionally, it comes with CFS Calibration software for comprehensive control and remote administration, including DICOM and MQSA compliance tests. This monitor supports various types of diagnostic images, including mammography, X-ray, MRI, and more, and is backed by a 5-year warranty.
Each C12MPG, Gemini Series Color LED Large Format Diagnostic Monitor includes CFS Calibration software from Double Black Imaging:
- DICOM 3.14 Automatic calibration with local and Web-based remote administration
- Email alerting for proactive workstation maintenance
- Total control of display settings, including remote adjustment and calibration testing
- Built in Visual tests for DICOM and MQSA Compliance
- Comprehensive reporting for Joint Commission, MQSA, Fleet tracking, asset management, and DICOM compliance
- DBI’s exclusive Radiologist Productivity toolkit
This 12 Megapixel Color LED monitor can be used for viewing of grayscale or color images – including multi-modality exams involving Mammography, Tomo, X-Ray, DR, CR, MRI, US, PET, 3D, Cardiology, NucMed, and Digital Pathology.
Double Black Imaging backs each diagnostic display with our signature 5-year warranty. Our team has a renowned history of providing the industry’s finest customer service; we are continually acknowledged by thousands of Radiologists and IT Professionals who put their trust in us every day.
Call now to request a quote on the Gemini Series 12MP Large Format Display!
G-Series Technical Specifications
- G SERIES COLOR : 12G
- Size and Aspect Ratio : 31″; 3:2 Aspect Ratio
- Active Display Area H x V : 25.75″ x 17.125″
- Resolution : 4200 x 2800 (12MP)
- Brightness : 1080 cd/m2 Typ. with Uniformity on; 600 cd/m2 Calibrated Brightness
- Contrast Ratio : 1500:1 Typ.
- Look Up Table : 14-bit LUT
- Response Time : 14ms (Off); 5 ms (Fast Setting)
- Pixel Pitch : 0.1554 x 0.1554 mm
- Built In Sensors : Front Sensor, Backlight Sensor, Ambient Light Sensor, Presence Sensor
- Display Modes : Multi-resolution Mode (12MP/6MP), Focus View Mode, Light Box Mode, Pathology Mode
- Panel Technology : TFT AMLCD IPS Color, LED Backlit
- Surface Treatment : Anti-reflective, 3H
- DICOM Calibration : Yes with Built in front sensors via CFS. Includes MQSA reporting, alerting and CFS Web Manager
- Viewing Angle : 178° Typ.
- Video Input / USB (1up 1down) : DisplayPort (2), USB (1 Up, 3 Down)
- Power Supply : External for Added Reliability. AC Input to power brick: 100-240V
- Tilt/Swivel/Height Adjustment : – 5 to +15° tilt | +/- 15° swivel | 110mm height adj
- Power Consumption : 160w max./Power save mode < 5w
- Weight (Approx) : 30.9 lbs w/Stand; 23.6 w/o Stand
- Dimensions ( W x H x D ) : 27.7″ x 26.1″ x 11 w/Stand; 27.7″ x 19.7″ x 3.3″ w/o Stand
- Mounting Options : 100 x 100 mm VESA
- Safety & Emissions : IEC(IEC 60601-1 /IEC 60601-1-2), EN(EN60601-1 /EN 60601-1-2), IEC(IEC 60950-1 / CISPR32 / 35),
- EN(EN 60950-1 / EN55032, 55035), cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1), FCC (FCC pat 15 Class A), RoHS, REACH, WEEE, FDA 510(k) (Class II)
- Warranty : 5-Year standard warranty with Hot Swap
- PACS Application : Multi-Modality PACS, CR/DR CT MRI US DSI DSA PET/CT Image Fusion X-Ray Nuclear Medicine
- Mammography Application : Digital Mammography,Digital Breast Tomosynthesis
Double Black Imaging’s Gemini Series 12MP Large Format Diagnostic Monitor, a color LED backlit LCD, doubles the resolution and eliminates the gap between screens in multi-head display configurations; this allows the eye to seamlessly glide between images uninterrupted while increasing productivity and user efficiency. Complete with auto-calibration technology, this 12MP wide-screen model enables multi-modality imaging including Digital Breast Imaging.
DBI’s Gemini Series 12MP Large Format Diagnostic Monitor features exceptionally high brightness and high contrast ratios, and its auto-calibration capability ensures consistent diagnostic quality images over years of use. Confidence is high and workflow is enhanced with our productivity tools and wide viewing angle.
The C12MPG, 12MP Color LED Backlit LCD is equipped with built in front sensors for hands-free automatic DICOM 3.14 calibration, as well as backlight sensors and ambient light sensors to maintain stability and accuracy over time.
