Gemini Series - 12MP Large Format Diagnostic Monitor

SHARE

Double Black Imaging offers a comprehensive range of medical grade computer monitors compatible with various PACS medical imaging systems. These displays, including the Gemini Series 12MP Large Format Diagnostic Monitor, feature ultra-high contrast and brightness, Automatic DICOM 3.14 calibration through front sensors, and substantial screen sizes for enhanced diagnostic accuracy. FDA-approved for specific diagnostic imaging requirements, these monitors come with a suite of configuration and remote management software tools, supporting diagnostics from 2MP to 12MP resolutions in both monochrome and color. The Gemini series specifically addresses multi-modality imaging needs and includes auto-calibration technology, stability sensors, and ambient light sensors to ensure consistent performance. This range of radiology monitors also meets DICOM standards and comes with a five-year warranty and dedicated customer support, guaranteeing optimal performance and longevity in demanding clinical environments.

Most popular related searches
pet CT imaging
medical imaging system
mammography tomosynthesis
CT imaging
nuclear medicine
breast imaging
diagnostic imaging
digital pathology
medical imaging
radiological monitoring

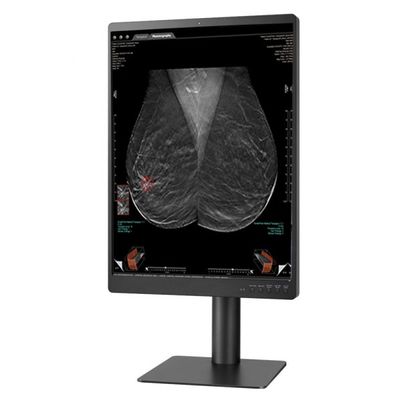

Ideal for use with multi-modality imaging , including Mammography and Tomosynthesis, the C5MPn provides a clear, detailed image for ease in diagnosis.  Front, backlight, and ambient light sensors on each monitor provide True DICOM gray level and luminance auto-calibration to maintain stability and accuracy over time.

Increase your confidences and enhance your workflow with our productivity tools, PrivateLite, and wide viewing angle.

Each C5MPn, 5MP Color LED includes CFS Calibration software from Double Black Imaging. This software gives you total control of display settings, including remote adjustment and calibration testing. It also increases efficiency with DICOM 3.14 Automatic calibration with local and Web-based remote administration, as well as email alerting for proactive workstation maintenance. In addition, the software adheres to quality assurance measures using built in Visual tests for DICOM and MQSA Compliance and comprehensive reporting for Joint Commission, MQSA, Fleet tracking, asset management, and  DICOM compliance.

This 5MP Color LED monitor with FDA510(k) for mammography and Tomo can be used for viewing of grayscale or color images – including multi-modality exams involving Mammography, Tomo, CR, MRI, US, PET, 3D, Cardiology, X-Ray, DR, NucMed and Digital Pathology.

Double Black Imaging backs each diagnostic display with our signature 5-year warranty. Our digital imaging and communications team prides ourselves on a renowned history of the industry’s finest customer service; we are continually recognized by thousands of Radiologists and IT Professionals who put their trust in us every day.

  • Description : 5 Mega-Pixel Color LCD with Fixed Front Sensors, Back light Sensor, and Ambient Light sensor for Mammography and Tomosynthesis
  • Screen Type : LED Backlit LCD
  • Applications : Multi-Modality PACS, CR/DR, CT, MRI, US, DSI, DSA, PET/CT, Image Fusion, X-Ray, Nuclear Medicine, Mammo/Tomo
  • Diagonal Screen Size (inches) : 21.3″
  • # of Pixels : 5 Mega-Pixel
  • Resolution (pixels) :
  • 2048 x 2560 Portrait;
  • 2560 x 2048 Landscape
  • Contrast Ratio (typical) : 1800:1
  • Viewing Angle : 178 Degrees Typical
  • Brightness : 1100 cd/m2; 350-600 cd/m2 ACR Recommended Calibrated brightness
  • Look Up Table : 10-Bit Color
  • Video Input/USB : Display Port (2), DVI x 1 (Dual link), USB (2 Up, 2 Down)
  • Dimensions H x W x D (inches) : 24.97 x 14.4 x 9.19″ with stand; 18.6 x 14.4 x 3.07″ w/o stand
  • Weight with stand/base (lbs.) : 17.3 lbs ; 12.01 lbs w/o stand
  • Power Supply : External for added reliability. AC Input to power brick: 100-240V
  • Power Consumption (on/savings) : 100W (Max) / 2W during Power Save
  • Safety & Emmissions : IEC (IEC 60601-1/IEC 60601-1-2), EN (EN 60601-1/EN 60601-1-2), IEC (IEC 60950-1 & IEC 62368-1 /
  • CISPR 32, 35), EN (EN 62368-1 / EN 55032, 55035), cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2
  • NO. 60601-1), CE MDR, ISO13485, RoHS, REACH, WEEE, MFDS, FDA 510(k) Class II
  • Warranty : 5 Year Warranty with Hot Swap
