TissueRay3D Bioprinter

SHARE

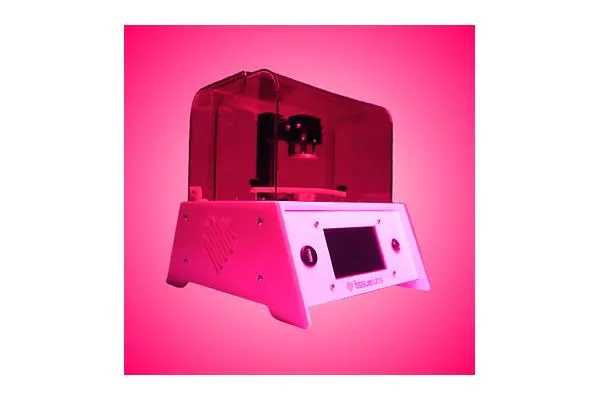

TissueRay™ is the first masked stereolithography (MSLA) 3D bioprinter in the market. Bringing the speed of light to 3D bioprinting, TissueRay® offers the perfect combination of high resolution and throughput. The light-based system allows the creation of microfluidic devices, organs-on-chips, cell-laden constructs, and scaffolds for tissue engineering and regenerative medicine applications.

Most popular related searches
  • Pixel count: 4098x2560 (4K)
  • Pixel density: 732 PPI
  • Dot pitch (XY resolution): 35μm
  • Z-precision (motor-driven): 10 μm
  • Print area: 60x60 mm (60 mm circle)
  • Print height: 70 mm
  • Light wavelength: Customizable
  • Supported plates: Petri dishes (up to 60 mm)
  • Power Requirements: AC 110V/220V
