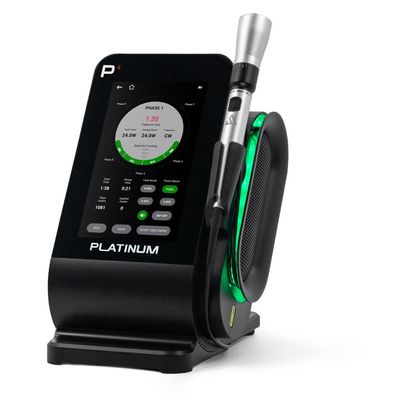

Summus - Model P4 - Advanced Therapy Laser Platform

• 1,300+ Phased Protocols : Designed and tested by doctors for doctors. Plus, create and save your own custom protocols.
• Best-In-Class Warranty : Lifetime diode warranty and 3-year manufacturer’s warranty.
• 4 Wavelengths : 650nm Accelerates Surface Healing, 810nm Increases ATP Production, 915nm Enhances Oxygen Delivery, 980nm Improves Circulation.
• Optimal Power : The power range of our lasers provide a more effective & safe therapeutic treatment.
• Easy to Use : Intuitive touchscreen interface allows you to quickly set-up an expert treatment protocol.
• 4 Hand Piece Optics : Treatment versatility with our 50 mm broad beam (open lens & curved contact lens), 25 mm zoom (open lens), 25 mm (curved contact lens).

Frequencies
1 to 20,000 Hz & ISP

Diode
High powered solid-state diode module

Weight
Laser: 6.5 lbs.

Dimensions
7.5”(L) X 7.5”(W) X 11”(H)

Battery
Up to 1 hour (in-use)
7 hours (stationary)
30-minute recharge time
Interchangeable battery

Technology Platform
7 Inch HD touch screen
Android platform
Wi-Fi enabled software updates

Hand Piece Optics
(4) 25mm open zoom lens, 25mm curved contact lens, 50mm open lens and 50mm curved contact lens

Condition Specific Protocols
1,300+

Unlimited Patient History Data
Yes

Laser Cable
Rugged 3-Layer Polyimide
400-micron Fiber

Safety Goggles
3 Pairs

Skin Tone Selection
Yes

Wavelength Combinations (nm)
650nm, 810nm, 915nm, and 980nm

Wavelength Selectability
15 Combinations

Intense Superpulse Peak (ISP)
28W

Continuous Wave Power (CW)
24W

Beam Profile
Homogeneous

No Charge Unlimited CE
Yes

Clinical Support
Yes
