vivoVerse vivoCube+ - All-In-One Fluid Control Solution for Microfluidics

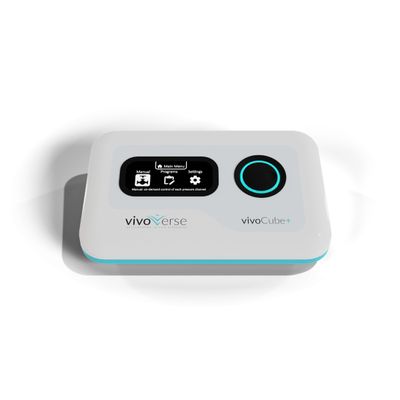

vivoVerse`s vivoCube®+ is the latest version of our popular vivoCube microfluidics controller used in labs worldwide. Reengineered from the ground up, it provides users with an all-in-one solution for delivering, smooth accurate pressure driven flow for their experiments. It features two independently controllable pressure outputs supplied by an internal pump to drive flow from different liquid reservoirs, or supply fast, accurate pressure stimuli. The vivoCube+ is fully portable and more compact than other microfluidic flow controllers to allow it to fit in anywhere on your benchtop. No PC is required. Users can program virtually any series of pressure sequences directly on the unit using the intuitive vivoCubeOS and walk away.
The vivoCube+ continues to be ready out-of-the-box for use with our vivoChip microfluidic devices, with pre-programmed pressure cycles that have been optimized to load and immobilize C. elegans and other nematodes of all stages for high resolution imaging. However, the vivoCube+ is suitable for many more applications. Contact us to find out if it can work for you.
- Smooth, accurate pressure control
- Compact, self-contained unit
- Fully programmable
- Integrated with vivoChip
Multiple applications
Microfluidics for cells, organoids, model organisms, and many more
Built in pressure source
Automatically-controlled internal pump for a stable pressure output
Dual channel output
Automatically-controlled internal pump for a stable pressure output
Programmable
Create pressure cycle programs for your specific applications, or select from a library of optimized presets
Compact, sleek design
Intuitive user interface packed in a portable case, no PC needed
Expanding functionality
Additional features and flow sensor connectivity via future updates
The vivoCube+ can be paired with our vivoFlow flow sensors for precisely calibrated, smooth delivery of liquids to your microfluidic setup. The vivoFlow has closed loop monitoring and control of fluid delivery over a wide range of flow rates and volumes down to >1µL/minute and is compatible with most chemicals, making it suitable for a multitude of microfluidics applications.
The vivoCube+ has been designed to work in tandem with our vivoChip microfluidic devices for rapid high-resolution imaging of worm populations. See how it can help accelerate your experiments with C. elegans and other nematodes.
The vivoCube+ and vivoFlow are highly suited to a wide variety of microfluidics applications such as:
- Perfusion for cell cultures
- Perfusion for organ-on-a-chip systems
- Pulsatile flow generation
- Droplet generation
- Automatic reagent distribution
- Nanoparticle syntheses
PERFORMANCE
- Pressure range (built-in pump): 0 to 10 psi (gauge)
- Pressure range (opt. external source): 0 to 30 psi (gauge)
- Sensing bias: <0.1 psi
- Sensing resolution: ±0.002 psi
- Pressure accuracy: ±7% 0.1 to 0.5 psi
- ±2% 0.5 to 1 psi
- ±1% greater than 1 psi
- Pressure stability: ±0.01 psi
- Pressure channels: 2
- Max flow rate*: 1000 mL/min
- *total flow rate is divided among the two channels if operated simultaneously

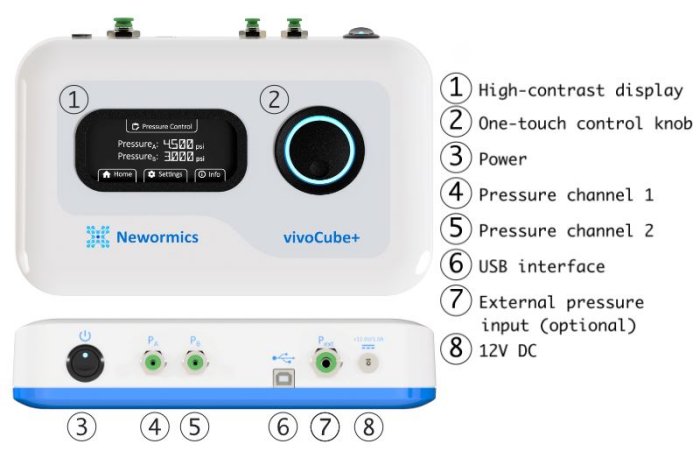

GENERAL
- Power consumption: 12 W
- Voltage: 12 VDC
- Dimensions: 250 mm × 155 mm × 54 mm
- Weight: 815 g
- Number of independent channels: 2
- Output pneumatic connections: Push-to-connect fitting for OD 1/8”, ID 1/16" tubing (PA & PB)
- Input pneumatic connection (optional): Push-to-connect fitting for OD 1/4”, ID 1/8" tubing (Pext)
- Flow media compatability: Non-corrosive, non-ionic gases such as air
- Hardware connections: USB
