Mammograph - Analog and Digital System
The perfect synthesis between excellent imaging technology and successful design made of modern and ergonomic lines: the new Italray MAMMOGRAPH product line represents the ideal solution to satisfy every diagnostic request for clinical mammography: from mammography to stereotaxic biopsy.
The different models available (from the analog mammograph MAMMOGRAPH to the digital one for 3D tomosynthesis: MAMMOGRAPH D-TOMO +) ensure the clinician productivity and high image quality, without forgetting at the same time attention to the patient, advantageous costs and use all the recent digital mammography imaging methods.
MAMMOGRAPH
The innovative mammograph for traditional analogue imaging. Implementable with the device for stereotaxic and tomo-guided biopsies. Upgradable with DR panels.
MAMMOGRAPH FFDM C+
For 2D image acquisition. It can be integrated with a wide range of accessories with unmatched performance-price specs.
MAMMOGRAPH FFDM+
For 2D image acquisition, fully upgradable to any digital method, also 3D. Implementable with a wide range of accessories including the device for stereotaxic and tomo-guided biopsies.
MAMMOGRAPH D-TOMO+
It can be configured for any type of mammography exam including tomosynthesis. It is easily upgradable with cutting edge biopsy techniques in tomosynthesis and contrast mammography.
MAMMOGRAPH Analog and Digital systems

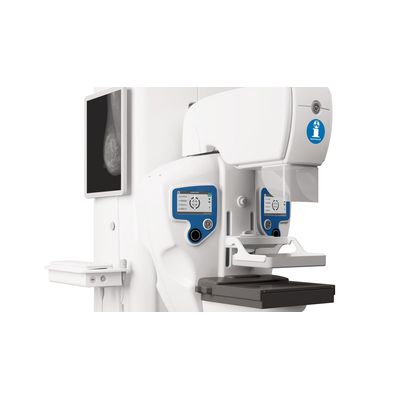

Compression system
Motorized and manual compression system with safe release, and parameters visualization on lateral displays.
Isocentric C-arm
Motorized vertical movement and continuous motorized(*) rotation with pre-selectable angles, all breast positions can be inspected without having to move the patient.
Ingrandimento geometrico
Geometric magnification
Device for (x1.5 / x1.8 / x2) geometric magnification with automatic selection of small focus once fitted
Sicurezza Operatore
Anti-X Safety
Protective anti-x barriers for operator safety and polycarbonate screen to protect patient’s face
Digital mammographs
Very high image quality thanks to enhancement algorithm for mammographic images.
Increase mammogram diagnostic content with a detailed 3D reconstruction.
Totally, microprocessor controlled digital mammography system; its asymmetry facilitates the operator both in accessing the controls and in controlling the patient.
Digital detectors with high DQE for a significant dose reduction compared to conventional systems.
Interfacing with any RIS, with PACS archiving systems and with DICOM printers.
- Adjustable manual and motorized compression with safety release
- Progressive reduction of compression speed for greater patient comfort
- Adjustable compression force and thickness shown on touch screen displays
- Special function for 0 N compression force for oncology procedures
- Motorized vertical movement
- Continuous motorized(*) rotation with programmable projections
- Two touch screen 7” colour displays with info about compression, patient, exam and ACR code;
- Usable for Stereotactic Biopsy in combination with the dedicated SBD accessory
- Image acquisition station, with integrated x-ray button and 2, 3 or 5 MP medical grade monitor
- Integrated acquisition workstation: a compact, high-performance configuration, dedicated for complex and mobile installations
- Optional separate acquisition workstation with integrated anti-X protective barrier
- Applied basing on breast density or compressed breast thickness (for patients with prothesis)
- Device for the calculation and visualization of the Average Glandular Dose (AGD)
