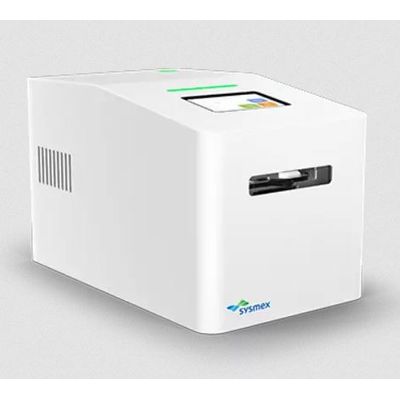

Sysmex - Model PA-100 - AST Diagnostics System - Urine Analyzer
FromYunycom d.o.o.
Advanced diagnostics for Urinary tract infection to support treatment decisions; The PA-100 AST System is an automated urine analyser that combines phase contrast microscopy and nanofluidics to make antibiograms available at the point of care. Because only by using ground-breaking technology can we achieve the most advanced diagnostic performance.
Most popular related searches
urine analyzer
urinary infection
automatic urine analysis
urinal
antibiotic prescription
urine sampling
urinary tract
healthcare testing
urine analysis
antibiotic susceptibility testing
Antimicrobial susceptibility testing for near-patient settings
- Determination of bacterial growth and antibiotic susceptibility testing (AST) in less than one hour
- Patented technology based on nanofluidics principles
- Fast and easy to use
- Results based on EUCAST standards
Advanced diagnostics for the point of care
- Automated and rapid analysis of urine samples with a lab-on-a-chip technology
- Optimised workflow: results during the first visit of the patient to the physician
- No sample pre-treatment
Fast, reliable results
- AST as fast as the biological response of the cell to the antibiotic
- Phenotypic AST, based on actual resistance profiles
Fight AMR
- Informed antibiotic prescription decision in less than one hour
- Avoid empiric treatment and reduce AMR spreading
The PA-100 System comprises two main elements
| Main analyser | PA-100 |
| Measurement principle | Phase contrast microscopy |
| Sample volume | 400 µL |
| Time to result |
|
| Display | 4,3” Resistive Touch Screen LCD |
| Maintenance | Maintenance-free |
| Memory | 500 results (including AST) |
| Quality control | System performance: PA Control Beads |
| Connectivity | USB, External printer (optional) LIS (POCT1-A) |
| Accessories | Barcode reader (included) WiFi dongle (optional) |
| Dimensions | 200 x 220 x 360 mm (W x H x D) |
| Weight | 13 kg |
Single use cartridge
| Single use sample cartridge | PA-AST Panel U-0501 |
| Sample type | Fresh native urine (not older than 30 minutes) |
| Sample volume | 400 µL |
| Bacterial growth medium | Mueller Hinton Broth II |
| Tested on five bacterial species | E. coli, P. mirabilis, K. pneumoniae, S. saprophyticus, E. faecalis |
| Antibiogram for five antibiotics | Amoxicillin/clavulanic acid, ciprofloxacin, fosfomycin, nitrofurantoin, trimethoprim |
