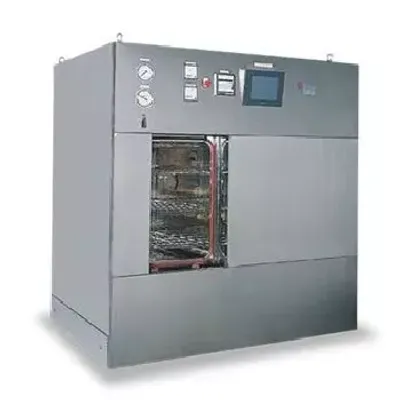

ECMC - Model APSR-01 - Autoclave Steam Sterilizer for Pharmaceutical and Biotech Applications

FromECMC (E CHUNG MACHINERY CO.)

SHARE

The Autoclave Steam Sterilizer by ECMC (E CHUNG) is designed for high-pressure steam sterilization, primarily used in pharmaceutical and biotech manufacturing processes. It is equipped with a touch panel featuring a Human Machine Interface (HMI), programmable logic controller (PLC), signal conditioning units, safety circuits, and emergency switches to ensure safety and ease of operation. The system utilizes pure steam as the heating medium, maintaining a strict control over sterilization temperature, typically at 121℃, with a precision of ±0.5℃ in temperature and heat distribution, both in full and no-load conditions. This stringent control ensures the reliable destruction of microbes, making it compliant with international standards such as EU, US, GMP, and GAMP. ECMC (E CHUNG) is a seasoned manufacturer with over 48 years of experience in producing high-quality cGMP pharmaceutical and biotech processing equipment. Their equipment is globally trusted and employed by various pharmaceutical and biotechnology facilities.

Most popular related searches

pharmaceutical biotechnology

hospital laboratory

pharmaceutical application

sterility testing

pharmaceutical process

pharmaceutical processes

pharmaceutical processing

Sterilization chamber in SUS 316, SUS 316l and SUS 316Ti stainless steel.
Piping and valves directly connected with chamber in stainless steel.
Chamber piping all valves and fittings are sanitary class.
Insulation by Glass wool.
Automatic temperature controller.
Automatic temp. Recorder - 6 points or 12 points.
Sealed Door Packing: Use heat-resistant silicon rubber material ring packing.
Absolute air vent filter for prevention of sterilized product contamination.
One door or pass through type double doors.
Single wall (cylindrical chamber) or double walls (parallelepiped chamber) body.
All control and safety components are adapted to the higher temperature and pressure.
Option: RS 232 Interface is for connecting to an external computer.

The Autoclave Steam Sterilizer has a touch panel with Human Machine Interface (HMI), signal conditioning units, safety circuits and emergency switch. The Autoclave Steam Sterilizer is controlled at all time by the HMI. Which contains the operation automatic screen, manual, trend graph, parameter, dynamic and password, etc.

In order to destroy the uniqueness of microbes and bacteria, the Autoclave Steam Sterilizer is designed to withstand high-pressure steam and temperature, and use pure steam as the heating medium.
When the sterilization temperature is 121℃, the acceptable range of no-load and full-load's temperature and heat distribution is within plus or minus 0.5℃.

The panel use LCD touch screen control.
Program Flow: PLC control. Easy operation. Providing three sterilization programs or customize specifications as customers' requirements.
Simple & Safe operation: The automatic program provides complete and safe control to ensure safe operating condition.
Temperature recorder for continuous monitoring and recording the sterilization process.
Vacuum filter: online SIP sterilization, completed test report, heating and drying for the filter shell to prevent the filter from clogging and moist bacteria.
The pure steam inlet can be used for condensation sampling, online inspection, dryness or steam quality test.
The inner carcass and interlayer pressure can reach 3.5 bar.
The heat distribution of inner carcass can reach temperature within ± 0.5°C.
Check the temperature of the holes, all the holes can drain water completely.
The inner carcass is a special design so that all water can be completely drained.
Inner carcass vacuum leak test, heat penetration test, steam quality test.
Can be connected to an external computer to calculate the Fo value automatically.
Can implement complete FAT, SAT, DQ, IQ, OQ, PQ with the owner together.
During the warranty period, technicians will come to your factory for free service.
Human-machine has 4-level control authority management and records.
Comply with EN285、HTM2010、PDA TR1、UPS, etc.

Pharmaceutical / Hospital / Laboratory / Food / Biotech Industries.
For rubber stopper, glass bottle, metal bottle, aluminum cap, tank, waste.
For machine, filling & stainless steel fittings, clothes, sterilization clothes, filter, and filter element.
For terminal sterilization, PVC, PP Plastic bottle, vials, ampoule, non-infusion, and soft bag.
For ampoule sterilization and leaking test.
For animal feed and animal caglensese.
For equipment and system components.
For tool, instrument.
For contact lenses.
For wrapped or unwrapped material sterilization.
For material sterilization, such as membrance container, PVC or PP, etc.
