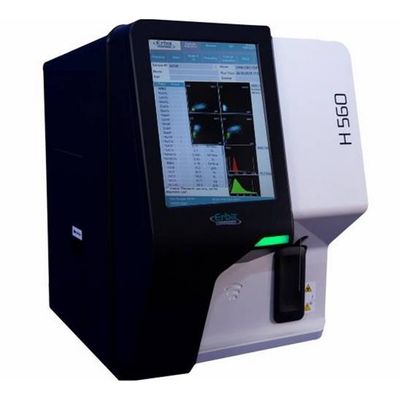

Erba - Model H 560 - Automated 5 Part Differential Hematology Analyzer
FromErba Mannheim
Intensity of light scattered from semiconductor laser beam on the blood cells reflects cell size and intra cellular density. Low angle scatter shows cell size, while the middle and high angle display intracellular information (nucleus and cytoplasmic content). Pulse data thus captured plots 4 2D scattergrams. Independent WBC / Baso channel uses special hemolytic agent that extracts Basophils.
Most popular related searches
whole blood
blood count
hemoglobin test
blood cell
hematologic
hematology analyzer
hematology
blood analyzer
blood analysis
automatic hematology analyzer
- 26 reportable parameters including P-LCC , P-LCR
- Three angle laser flow cytometry for WBC count and differential
- Electrical impedance method for RBC and Platelet enumeration
- Cost effective - Three reagent design
- 15 µl sample volume
- Large coloured LCD touch screen of 10.4 inch
- Throughput 60 samples/ hr
- 3 counting modes -Whole blood, Capillary and pre-dilution
- Large storage capacity of 50000 samples
- Research parameters displayed :-NRBC , LIC (large immature cells ) and ALY (atypical lymphocytes)
- Cyanide free reagent for Haemoglobin testing
- Complete blood count analyser for mid-size laboratories and those looking to upgrade from 3 part differential system
