BladderView - Model M5 - Bladder Volume Instrument
BladderView M5 is not only a bladder volume instrument. It is also an ultrasound device which measures bladder wall thickness noninvasively. Such integration makes it a powerful tool to improve clinical efficiency.

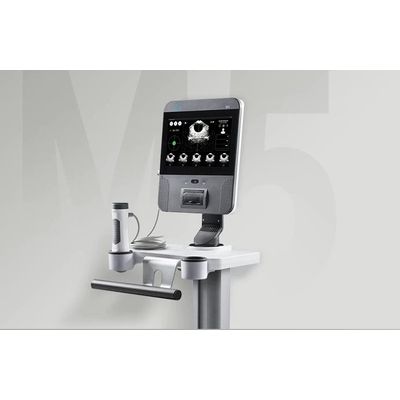

M5 is a system composed of a console with a touchscreen display and a built-in printer, a probe with ultrasound transducer and a medical cart. Wired connection is adopted between the console and the probe.
Clinical Benefits:
- Measure bladder volume noninvasively.
- Lower risk of CAUTI (Catheter Associated Urinary Tract Infection).
- Identify different types of urinary incontinence to determine proper nursing.
- Accelerate post-operative recovery.
- Improve cost efficiency.
- Reduce workload and save inspection time for users.
Features:
- Three operation modes: Easy, Expert and Intelligence Mode.
- Manual or automatic bladder wall thickness measurement.
- Scanning time < 5 seconds.
- Easy to learn, quick to scan and precise in results.
- Two orthorhombic images, patient information and bladder values are printable.
- 10.1 inch capacitive touch screen.
- Bladder positioning guide on mini screen of the probe.
- Adopt 3D imaging technology.
- Multiple language selection.
- Big data storage space.
- Continuous scanning time > 2hrs, standby time >28hrs.
- Patient history information review.
- No calibration required.
Expert, Easy and Intelligence modes are available to choose while Expert is the default mode.
Expert Mode
- Display ultrasonic image.
- Illustrate 12 planes of real time ultrasonic images at the end of scanning.
Easy Mode
- Display a cross-section view of the inspected bladder.
- Illustrate 12 planes of cross-section sketches at the end of scanning.
Intelligence Mode
- Display a real time bladder scan projection position.
- Illustrate 12 planes of the real time ultrasonic images at the end of scanning.
Unique Characteristics
Adhering to the unique characteristics from the intelligent positioning technology, M5 further adds the features of bladder wall thickness measurement and dual-screen display when locating the bladder centre.
- Intelligent bladder positioning
- Bladder wall thickness measurement
- Dual screen display when positioning bladder
- 3D imaging of bladder
- Modes of scan: 3D scan
- Probe frequency: 2.5MHz±15%
- Measure volume: 0-999ml
- Display & control: 10.1 inch TFT-LCD
- Operation Mode: Easy, Expert & Intelligence mode
- Language selection: Multiple language
- Battery capacity: 3200 mAh
- Print mode: In-built printer
- Data transmission: USB/Wi-Fi
- Data storage: > 10,000 cases
- Continuous scanning time: 2 hrs
- Standby time: >28 hrs (under screensaver status)
- Accuracy: Error ±7%,±7ml
