QinFlow - Model Warrior lite - Blood and Fluid Warmer

High Performance at a Compact and Light Weight Form Factor and Significantly Lower Per Use Price!

The Warrior lite has been designed to support the needs of space and weight constrained first responders rescue gears and critical care transports for a lightweight and compact solution, while delivering non-compromising levels of performance (among all battery-operable solutions, the Warrior lite performance is only second to that of the Warrior and the Warrior EXTREME configurations). Not only that it delivers very high performance levels, but it also accomplishes this at a significantly lower cost of ownership compared with all modern battery-operable warmers; a true win-win solution. The Warrior lite –

• Warms near freezing blood/IV fluids at up to 180 ml/min (Extra Power battery), vs. 100-150ml/min of alternative solutions;
• Warm up to 3 liters (Extra Power battery) of near freezing blood/IV fluids with a single charge (vs. 1-2 liters);
• Uniquely validated to handle intense and intermittent bolus flows (more below)
• Is 50-70% more economical on a per-use basis!

The Warrior lite is a 3-part system composed of a controller (or Base Unit), battery, and per-patient warmer (i.e. disposable unit). Several accessories are offered so as to optimize the offering to the specific operating environments, such as mount accessory and extension cable. Assembly is simple and fail-safe, and takes seconds to accomplish. Blood/IV fluids will be warmed almost from the first drop, even at high resuscitation rates. The LED display is designed to support night-vision goggles. The consumable’s fluid path is aluminum-free, thus eliminating toxicity concerns associated with aluminum. Instead, the consumable uses patented medical-grade stainless steel warming technology. The efficiency of our technology ensures immediate warming. The system measures fluid temperatures a few hundred times per second and automatically adjusts the heating to ensure 38°C (±2°C) output. Thus, the Warrior lite handles intermittent bolus flows generated by intense push-pull resuscitation methods (e.g. hand pump, syringe, or LifeFlow-like devices), exceptionally well. The technology has been perfected over many thousands of field utilizations.

High Performance

• Fastest: Warms near frozen blood/fluid to 38°C (± 2°C) in a few seconds.

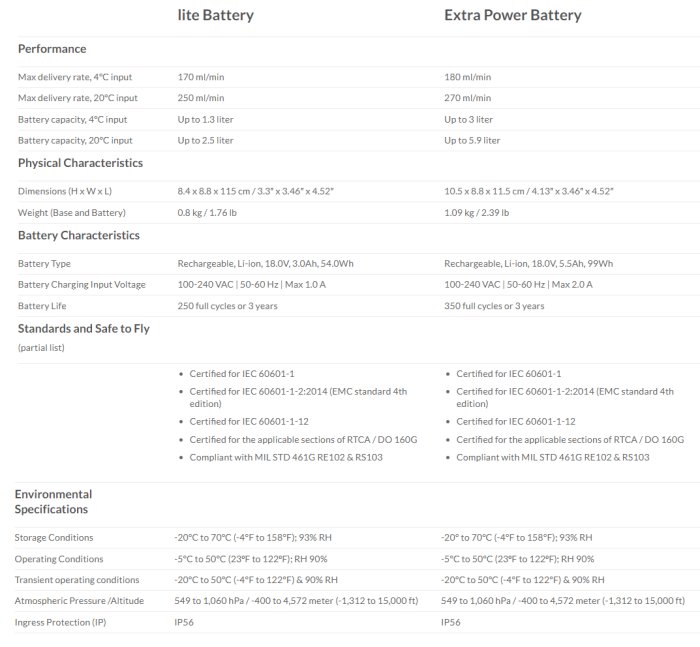

• Unmatched Delivery Rate: From KVO and up to 180 ml/min delivery rate at 4°C fluid input temperature and 270 ml/min for room temperature fluids, per single (fully charged) extra Power battery.
• Unmatched Battery Capacity: Up to 3 liters at 4°C fluid input temperature and 5.9 liters at 20°C fluid input temperature per single (fully charged) extra Power battery.
• Unique Bolus Flow Handling: Real time sensing and highly efficient warming technology guarantee fast reaction to flow changes.

Designed with the User in Mind

• Compact & Light weight: Can fit in a backpack.
• Simple To Operate: Fail safe assembly. Functions on gravity feed. Flow can be regulated with pressure bag or pump (300 mmHg).
• Same Disposable Unit Fits All Protocols: The same disposable unit can be used for blood and fluid products.
• No Proprietary Tubing: Does not require proprietary blood/IV fluids line. Fits all common IV tubings.
• Communicative: Night vision goggle compliant LED panel for indications; over and underheating indications; battery capacity indications .
• Mountable: Can be mounted to pole, rail or stretcher; can be hooked to a carabiner or attached with a strap.
• Unique Continuum of Care Proposition: Same consumable can be used across the entire continuum, simplifying patients’ handoff and reducing cost.

Cutting Edge, Mature, and Safe Underlying Technology

• Smart Warming Technology: Microprocessor controller highly efficient smart warming technology.
• Common Heating Element: Medical grade stainless steel coil.
• Extremely Relaxed Heat Transfer Mechanism: Incremental heat transfer over 220cm / 7.2 ft. coil.
• Mature Technology: Field Proven, patent protected technology with thousands of field utilizations.
• Safe Technology: Fail safe design; aluminum free.
• Defibrillation Proof Type BF Applied Part: Safe to be used jointly with a defibrillator.
• Meets the Requirements of the Stringiest Standards for Field Operation: Certified for top EMS regulatory standards IEC60601-1, IEC60601-1-2:2014, and IEC60601-1-12

Practically Zero Maintenance

• Service Cycles: 5 years between service cycles.
• No Calibration: No need for periodic calibration.

• The Warrior lite is marketed in the USA, Canada, EMEA, Australia, and New Zealand.
