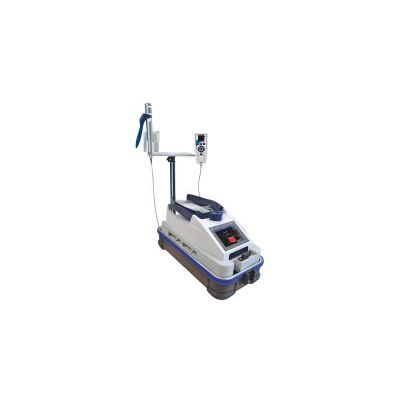

Docon - Model 7 - Blood Transfusion Controller

Docon 7 Standard (00003700)

Over the last 20 years the Docon has become firmly established in both national and international markets. In 2014 we introduced the systematically developed Docon 7.

The emphasis here is on

• Enhanced safety, more robust design and greater user friendliness
• Technical innovations include
• Color display with a touchscreen, touchless tube identification, use of antibacterial plastics and several more (see page 3).
• Use of proven platform concepts
• Full network and operational compatibility with the first generation Docon

The device can also be fully configured to meet customers’ needs.

The easiest way to transfer data is using a USB flash drive.

Docon 7 WLAN Option (00003676)

The Docon can be incorporated into conventional WLAN networks that meet the current standard to transfer donor data to a PC.
Combined with the new DMS PC software, Docon can also be fully configured for online monitoring of blood mixing scales and bidirectional communication.

The Seal Option enables tubing systems to be sealed during and after donation at the donor chair with the utmost safety in order to prevent contamination of the blood donation. The sealing procedure can be documented in the donor data set.

• Self-regulating clamp with contactless tube detection
• Protected weighing tray, magnetic fixation, use of antibacterial plastics
• Multifunctional battery system using the latest lithium-ion battery technology
• Color display with free configurable touchscreen
• Integrated charging device
• Seal option
• Data management options using USB, LAN and WIFI
• New PC software for safe data handling and customized device setups which supports bloodbanks with regard to international standards such as ISO and is oriented towards GMP
• Can be fully integrated into existing Docon^® networks
• Back-friendly operation with Docon^®7 Mobile II
• User orientated range of accessories
• Device and software can be adapted to almost any language
• RFID functionality

• Dimensions: 458 mm x 222 mm x 152 mm
• Weight: 3,000 g
• Voltage: 100-240 VAC
• Weighing accuracy: +/- 5 ml
• System weight: 7 - 9 kg
• Sealing time: 2 -4 seconds
