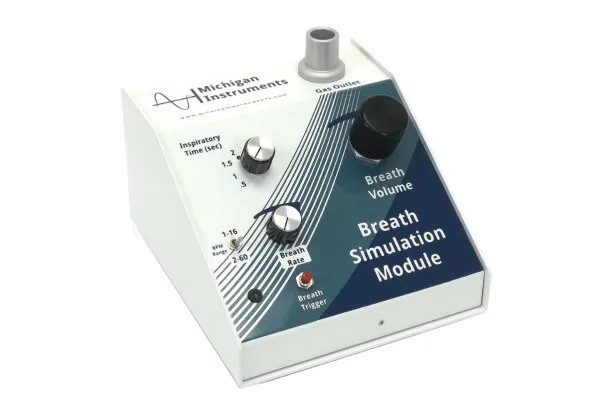

MII - Model BSM - Breath Simulation Module
The Breath Simulation Module (BSM) is a compact device designed to transform the Dual Adult TTL or PneuView Lung Simulator into a spontaneous breathing system. Spontaneous breathing simulations are especially useful for designing, demonstrating, testing and providing training on non-invasive and supportive modes of ventilation and oxygenation. The BSM can also be used with Adult-Infant simulators to simulate a spontaneous breathing infant lung.
-
The Breath Simulation Module (BSM) is a simple and relatively inexpensive option for simulating a breathing patient on one of our dual-lung simulators
-
The BSM allows control of breath rate, tidal volume and inspiratory time
- Breath Rates of 1 to 60 breaths per minute
- Tidal volumes of 50 to 2,000 ml
- Inspiratory times of .5, 1.0, 1.5 or 2.0 seconds
-
With the BSM, a spontaneous breathing system can be set up in less than 2 minutes
- PARAMETER : MEASUREMENT RANGE
- Breath Rate : 1-60 Breaths Per Minute
- Inspiratory/Expiratory Time : User selectable .50, 1.0, 1.5, & 2.0 seconds (+/- 0.15 sec)
- Breath Volume : 50 – 2000 mL
- Manual Mode : Manual trigger provided for individual breaths
