Stille - Model imagiQ2 - 530-1700 - C-Arm Vascular Table
imagiQ2 is our most advanced table for use during procedures such as cardiovascular surgery, pain management, urology, and neurosurgery- where precision and high quality imaging are critical. Developed in close cooperation with leading surgeons. Based on innovate technology.

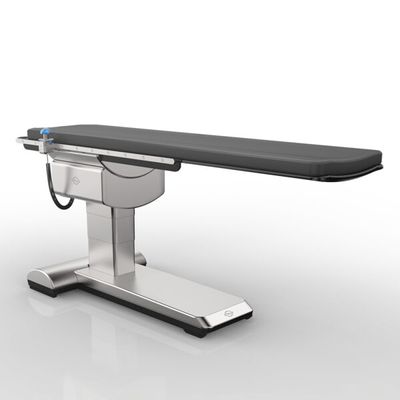

Stille imagiQ2 operating table for C-arm
imagiQ2 is our most advanced table for use during procedures such as cardiovascular surgery, pain management, urology, and neurosurgery- where precision and high quality imaging are critical. Developed in close cooperation with leading surgeons. Based on innovate technology.
Less radiation exposure
imagiQ2 has a carbon fiber top that is highly translucent to the radiation from the C-arm. The radiation dose needed to achieve good image quality is drastically reduced. imagiQ2 is 60 percent more translucent than other fluoroscopy tables. We named it the Low-Dose Enabler™ since the radiation dose can be cut to much lower levels than before. This is important especially for members of the operating team that have daily exposure to C-arm radiation.
Adjust the patient’s position quickly and intuitively using our True Free Float® technology that enables full flexibility and control over movement, in all directions. Cut operating times with up to 40 minutes. With imagiQ2 you can position the patient with greater ease and with more precision than with a motorized table. Large longitudinal and diagonal spans provide excellent flexibility. imagiQ2 is designed for both heavy loads and tall patients. Using imagiQ2 you can cut operating times with up to 40 minutes, so that both specialists and expensive equipment can be used more efficiently.
Higher image quality
Enjoy improved image quality by placing the C-arm receptor closer to the patient. imagiQ2 has an extremely low base with wheels that retracts into the base. The C-arm does not risk hitting the wheels and can easily be positioned for best possible image quality. In order to avoid any image distortions or artifacts, imagiQ2 has rounded edges. The image quality at and around the operating tabletop edges remain sharp and clear. Should you need to roll the patient during surgery, our ISO ROLL® cradling motion will make sure that image focus is retained throughout the motion, without the need to re-position either the patient or the C-arm.
Lower radiation dose, improved image quality and shorter operating times- 60 % better translucency than other tables
- No image artifacts or distortions from tabletop edges
- Cut operating time by up to 40 minutes
- True Free Float® positioning with full control over table movement in all directions
- Optimize the position of the c-arm receptor without hitting the base or wheels of the table
- Weight capacity: 496lb / 225kg (optional 661lb / 300kg with load upgrade pack)
- Table top length , width: L= 90.5” / 230 cm ; W= 21.6” / 55 cm
- Translucent length: 77.17” / 196 cm with headrest (66.6” / 169.2 cm without headrest)
- Translucent table top: Proprietary, patent pending carbon fiber structure. Al 0.4 mm
- Float & lock: STILLE True Free Float® and STILLE quick-lock system
- Float (longitudinal, lateral, diagonal): 35.4” x 9.9 ” x 36.8” / 90 cm x 25 cm x 93.4 cm
- Operation conditions: 100% continuous
- AC power: 100-250 Volts: Direct AC power + battery DC power
- Length, width, height: L = 92” / 234 cm; W = 30.3” / 77.2 cm; H = 28”- 43” / 71-109 cm
- Trendelenburg: ±25° (with load upgrade pack ±20°)
- Lateral roll (iso-roll): ±15° (isocentric roll keeps image focus & reduces scattered radiation)
- Wheels and steering: 4 swiveling back wheels
- Side rails: Fixed along 2/3 of the table top
- Detachable table top: Yes, future-proof platform for extended use and easy transport.
- Transport handle: Yes (Color: dark grey for 225-kg version, silver for 300-kg version)
