Combined CT-VT Metering Cubicles

• Combined CT-VT Metering Units and Cubicles are used for metering at high voltage side of the distribution system.
• Combined CT-VT Metering Units are Oil Immersed type whereas Combined CT-VT Metering Cubicles are Dry type in construction.
• Combined CT-VT Metering Units consist of 03 nos. single phase polyester / paper insulated CTs and 01 no. three phase polyester / paper insulated VT enclosed inside a metal tank filled with Transformer oil.

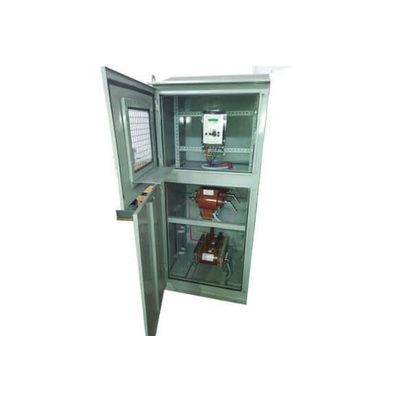

• Combined CT-VT Metering Cubicles consist of 03 nos. single phase resin cast CTs and 01 no. three phase resin cast VT enclosed inside a metal cubicle in the lower compartment. The three phase energy meter is installed in the upper compartment.

System Voltage : Upto 33 KV

Type : Oil Immersed / Dry Type

Rated Frequency : 50 Hz

Accuracy Class (CT) : 0.2s 0.2, 0.5s, 0.5, 1

Rated Burden (CT) : 2.5 VA to 30 VA

Accuracy Class (VT) : 0.2, 0.5, 1

Rated Burden (VT) : 10 VA to 50 VA

Primary Current : Upto1000 A

Secondary Current : 1 A or 5 A

Primary Voltage : Upto 33 KV

Secondary Voltage : 110 V

Applicable Standard : IS 16227, 2705, 3156 &IEC 61869, 60044

• Porcelain Bushings
• Primary & Secondary Terminals
• Terminal Connectors
• Oil Level Indicator
• Nitrogen Filling Valve
• Pressure Release Device
• Surge Arresters with mounting brackets (optional)
• Energy Meter (optional)
• Meter Box (optional)
