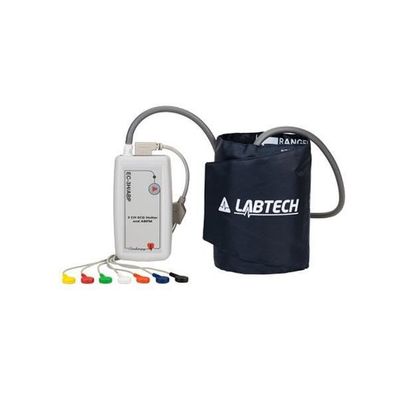

Labtech - Model EC-3H/ABP - Combined Three-Channel, Full Disclosure ECG Holter

Combined three-channel, full disclosure ECG Holter and ABPM System without PC and printer. The EC-3H/ABP Combined Holter System combines a 3-channel ECG Holter and an ambulatory blood pressure monitor. The QRS and PM can be detected with high precision, while template and rhythm analysis can be interactively modified by the user. This user-friendly software provides high-quality time- and frequency-based HRV, PQ, QT, ST, PM, Atrial Fibrillation, Flutter analysis, BBB and AV block detection and ABP results. The transparency and the interpretation of the results are aided by color-coded graphs and tables. The software offers a wide range of languages to choose from.

The system consists of: 1 pc EC-3H/ABP combined Recorder + analysis SW + USB-02/B interface + accessories*.

The System can be extended by the following recorders: EC-2H, EC-3H, EC-12H, EC-ABP, EC-3H/ABP.

*The manufacturer reserves the right to change the list of accessories at any time.

• Parameters:  EC-3H/ABP
• Bipolar ECG Channels: 1, 2, 3
• Other ECG Channels: +PM,, NEHB
• Respiration: Yes
• Patient cables for recording:
• 1, 2, and 3 channels
• Number of snap type Leads: 3, 4, 5, 7
• Recording Period (hours):  8h – 336h
• The battery can be changed during recording:  Yes
• Dynamic Bandwidth (min):  ±20 mV
• DC Offset Range (min): ±800 mV
• Frequency Response (max):
• 0.05 Hz … 150Hz
• Sampling Rate:  256 Hz … 2048 Hz
• Recording Rate: 128 Hz … 1024 Hz
• Common Mode Rejection Ratio (min):  120dB
• A/D Resolution:  16 bit
• Input impedance (min): 100 MΩ
• Battery Life (min):  24 hours
• Internal Voltage (max): 3.3 V
• Movement detection-3D:  Yes
• Monitoring ECG:  On PC via Bluetooth
• Reading Record:  via USB cable
• International Protection Rating Against Water: IPX0
• Size: 125 mm x 70 mm x 33 mm
• Weight:  ~ 250 g (incl. Batteries)
• BP measurement method:  Oscillometric with step deflation, Disatolic values correspond to Phase 5 Korotkoff Sounds
• BP measurement range: 20 – 260 mmHg (max inflate 300 mmHg)
• Pressure Transducer Accuracy:  ± 3 mmHg
• Pulse Rate Range: 30 – 220 BPM (Beats Per Minute)
• Pulse Rate Accuracy:  ± 2% or ±3 BPM, whichever is greater
• Calibration:  The device should be verified on a yearly interval
• Safety Systems: Max. inflation pressure is limited to 300 mmHg;
• Auto safety release valve for power failure.
• Maximum cuff inflation time is limited to 75 seconds.
• Duration of blood pressure reading is limited to 130 seconds.
• Min. Power supply: 2 x 1.2 V AA rechargeable batteries of minimum
• 2500 mAh capacity or 2 x 1.5V AA high quality
• alkaline batteries
• Patient button: Yes
• Storage Card Capacity: built-in 2GB (uSD)
• Blood pressure measurement interval settings: In intervals of 10 to 240 minutes (adjustable every minute)
