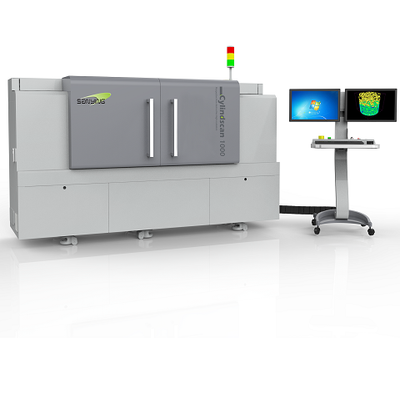

SANYING - Model Cylindscan-1000 - CT Scanner for Horizontal Sample Analysis
The Cylindscan-1000 is an advanced CT scanning system designed for high-precision analysis of cylindrical or slender samples, particularly beneficial for materials with dense structures. It features a horizontal layout where samples are positioned and rotated to accommodate varying lengths, effectively addressing a wide range of testing needs. With user-friendly software and a straightforward operation process, the Cylindscan-1000 enables efficient scanning through its fast spiral scanning capability. The system supports x-ray source voltages of 180KV, 200KV, 225KV, and 250KV, boasting an image area of 301mm by 250mm and a high-resolution pixel matrix of 3008×2496. Suitable for samples with diameters up to 150mm and lengths up to 2000mm, this scanner can be customized in terms of hardware and software to meet specific requirements. This makes it applicable across various domains such as oil and gas geology, geotechnical engineering, additive manufacturing, materials science, and the automotive industry.
cylindrical or slender samples are placed horizontally, which will then be rotated for scanning. This is suitable for dense material structurescylindrical or slender samples are placed horizontally, which will not be rotated during scanning. This is suitable for loose, dense and other material structures
The Cylindscan-1000 adopts a horizontal design. During the scanning process, the sample rotates, and the X-ray source and detector move horizontally to realize spiral CT scanning. With the advanced spiral CT reconstruction algorithm, the sample structure can be obtained quickly. For long samples, customized solutions can be provided. Cylindscan-1000 is suitable for testing of full diameter rock cores, trunks, etc.
- Sample placed horizontally and rotated for scanning to making itself suitable for test samples of different lengths
- User-friendly software interface and simple operation process
- Fast spiral scanning
- Rotate method : Sample rotate
- Maximum voltage of x ray source : 180KV / 200KV / 225KV / 250KV
- Image area : 301mm×250mm
- Pixel matrix : 3008×2496
- Maximum sample diameter : ≤150mm
- Maximum sample length : ≤2000mm
