Leiblein GmbH

LeibleinDepression Filter

SHARE

The depression filter uses a filter fleece medium to filter process fluids. In case of the depression filter, the liquid to be filtered is sucked vertically downwards out of the dirt tank, and through the filter medium. The solid processing residues are thus deposited onto the filter fleece. As time passes, even finer particles are held back, thanks to the filter cake that is formed. The pumps convey the filtrate directly to the consumers; an intermediate storage tank and additional pumps are not required.

Most popular related searches
  • Large filter area and the most minor space requirements
  • High throughput rates
  • Low operating costs, e.g. due to frequency-controlled IE4 pump motors
  • Low-maintenance and user-friendly
  • Fully automatic operations

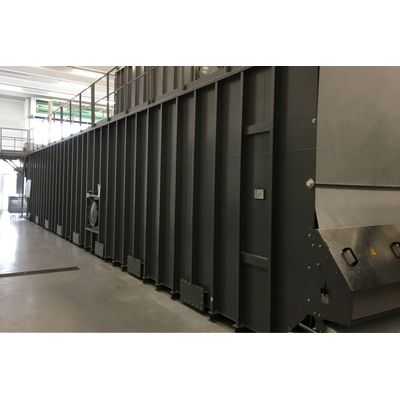

The depression filter is a rectangular container featuring an integrated chipping discharge facility and a superimposed clean tank. It is therefore particularly compact and spacesaving. The depression filter uses a filter fleece that is selected for the specific filtration task. Thanks to the twin filter design, the required filtrate quantity can quickly be doubled.

  • Material: coated steel, stainless steel 1.4301/1.4404
  • Filter fleece: polyester, viscose, polypropylene
