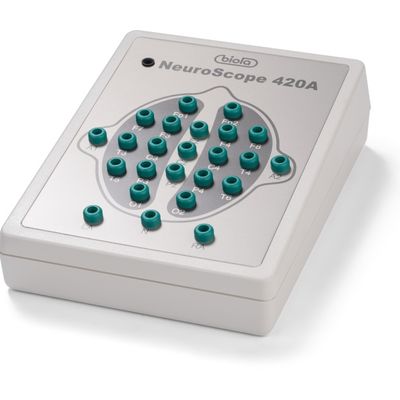

NeuroScope - Digital Electroencephalograph System

The NS400 model line offer exceptional quality and reliability. The price is several times lower compared to competitors. For even lower prices, you need to consider NS400A line. Even though it has fewer features than its bigger brothers it retains everything necessary for routine clinical tests, at a price that’s hard to believe.

Simplicity
To record an encephalogram just run the program and turn on the EEG recording, no special knowledge is required. At the end of the recording, save the file. The initial program presets are such that they are suitable for most routine examinations.

The program “Neuroscope” is free and you can download it from our website. You can record EEG on one computer, and view the records on any other where the Neuroscope program is installed. You will only need files of records of encephalograms, which can be transferred on a flash drive or sent by e-mail.

Video EEG
Neuroscope can record not only EEG but also video, for example, for the diagnosis of epilepsy. Scrolling through the synchronous video EEG examination, you see an encephalogram and a frame corresponding to a specific instant of recording. The position and approximation of the camera is adjusted directly from the program.

Reliability
We give 5 years warranty for our products. The devices do not require calibration, they are automatically calibrated at the beginning of work. A multi-level data protection system keeps your records – computer failure or a sudden power outage does not lead to loss of recorded data. The next time you start the program, the last entry will be opened, up to the second when the failure occurred.

Display accuracy and speed
EEG recording can take several minutes or hours. In any case, you can instantly scroll through it to the desired episode using the scroll bar or set recording events. The filtering parameters, sensitivity and montages can be switched both during recording and while viewing the EEG. Due to smoothing algorithms, EEG curves look as if they were drawn with a thin pen on paper. Digital signal filtering allows you to record all waves within the EEG frequency range and to prevent unwanted noise from other frequency domains.

Accuracy
Digital signal filtering allows you to record all waves within the EEG frequency range and to prevent unwanted noise from other frequency domains.

• 10 to 50 channels.
• Channels can be used as polygraphic in the presence of sensors (EMG, KGR, OKULO, ECG).
• To display the electroencephalogram, an image smoothing algorithm is applied that uses brightness gradation.
• Elimination of digital distortions when displaying EEG using the algorithm for increasing the signal sampling frequency by 2, 4, 8 or 16 times.
• Smooth adjustment of the overall drawing scale to bring the screen millimeters to physical millimeters.
• Equivalent paper speed from 10 to 1000 mm/sec.
• Sensitivity from 0.1 to 5000 µV/mm.
• Cut filter for high and low frequencies.
• Sensitivity, filter cut-off frequencies and color can be set for each EEG lead.
• Notch filter suppression network pickups 50 Hz.
• Algorithm for quickly calming the low pass filter.
• The program automatically creates a monopolar installation in the 10-20 electrode placement system. It is also possible to create an unlimited number of own installations.
• The number of leads in each installation is not limited.
• Paper speed, sensitivity, cutoff frequencies of the high-pass and low-pass filters, 50 Hz notch filter and montage can be changed by the user at any time viewing or recording the EEG.
• Electrode impedance measurement for recording quality control.
• EEG monitoring - the ability to monitor statistics without recording to the computer`s memory.
• Placing text labels while recording or viewing to simplify navigation through a long EEG record. Tags are organized into a list for quick access.
• Quick transition to a specific recording time.
• Hovering over a wave shows amplitude and instantaneous frequency.
• Translucent virtual line for EEG evaluation. The horizontal pitch of the ruler is changed by the mouse wheel.
• Spectral analysis of the entire EEG recording, and any fragment.
• The choice of the resolution frequency of the spectral analysis.
• The results of spectral analysis in the form of power spectra, topographic maps and tables of power values in each rhythm.
• Specifying frequency boundaries of the power spectrum. Mark the rhythm (spectral interval) inside the spectrum with the mouse to display the signal power in microvolts.
• Setting own spectral power rhythms for EEG or using standard (alpha, beta, delta and theta).
• Normalization of spectral density maps both for the total maximum value and for the maximum spectral density of the map for each rhythm.
• The program maintains a database of examinations.
• The program works in the MS Windows environment.
• Video recording is performed synchronously with the EEG recording.
• The video is synchronized with the EEG recording.
• Export of a video that combines EEG and video for viewing in a media player.
• Free software updates over the life of the device.
• Localization of equivalent dipole source.
• Automated formation of the conclusion of the EEG.
• Complies with the requirements of GOST R 50267.0-92 and IEC 601.1 for electrical safety.
