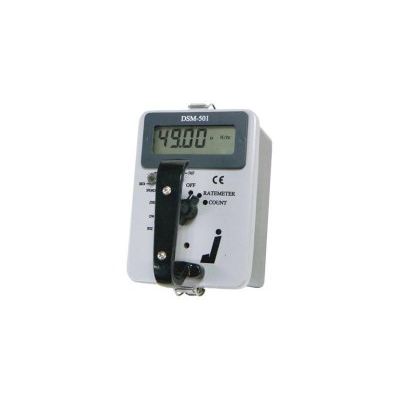

Model DSM-501 - Digital Micro-R Meter

The internal 1` x 1` plastic scintillator has a close to tissue-equivalent response and has an oversized digital backlit display, dose or cpm operation modes and comes standard with timed-count capability, probe-saturation and error indicators.

Most popular related searches

tissue equivalent

Input Sensitivity : 0.05V
Display-LCD : 4-Digit x .75" LCD w/LED Backlight
LCD Refresh Rate : 0.8 - 3.0 Sec in 0.2 Sec increments - adjustable
Display Backlight : Push button, 30 Second auto off
Dose Ranges : 1.0 uR/hr - 10 mR/hr or Sieverts
CPS/CPM Ranges : 0-9999 cps, 0-999.9 kcpm
Electrical Non-Linearity : +- 5% of full scale
Response Time : Optimized for Each Range
Drift : <5%
Count Times : 10-2550 seconds in 10 second intervals
Environmental : -20° F[-28° C]-140° F[60° C] | 5-95% RH
High Voltage : Adjustable 300-1500 VDC|Regulation +-1%
Alarms : 5-95% of Range
Battery : 6 "AA" Alkaline-400 hours nominal
Probe Linearization : Internal adjust for cal constant and dead time
Circuitry : Digital Microprocessor Controlled w/Analog Readout
Dimensions : 5.25" (14cm) H x 4" (10cm) W x 7" (18cm) L
Weight : 2.5 lbs. (1.2 Kilos)
Construction : Heavy Duty Cast Aluminum and Stainless Steel
Diagnostics : Low Battery, Overrange - audible and visual
Probe : Internal Tissue Equivalent plastic scintillator

Model DSM-501 - Digital Micro-R Meter

Specifications
