Shimadzu - Digital Multipurpose R/F System

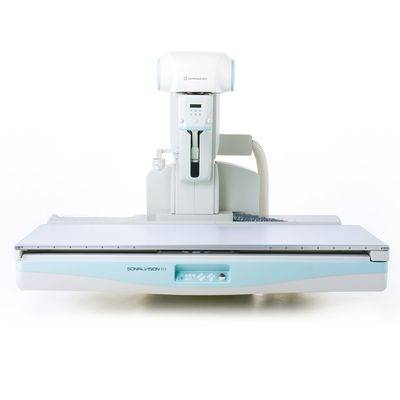

The Sonialvision G4 LX edition is an advanced Digital Multipurpose R/F System, delivering unparalleled functionality and quality tailored for diverse examination needs in imaging departments and institutes. Featuring ultra-high definition, the system utilizes a dynamic detector with a fine 139 μm pixel pitch and a high-sensitivity CsI scintillator. The integration of SUREengine-Advance and SCORE PRO Advance enhances clarity, ensuring superior fluoroscopic and radiographic imaging. The Flat Panel Detector (FPD) accommodates five selectable field sizes up to 43 x 43 cm, catering to a myriad of procedures. Designed with comprehensive dose management, it effectively minimizes radiation exposure levels for patient and staff safety. The system's X-ray table boasts an unrestricted access design, high weight capacity, and adjustable height, facilitating seamless patient support and improved hygienic conditions. Advanced imaging technologies like DSA, RSM-DSA, Slot Radiography, and Tomosynthesis further enhance diagnostic capabilities, providing high-precision results and simplifying complex imaging procedures.

Ultra-high definition and dynamic images

The dynamic detector has a small, 139 μm pixel pitch and a high-sensitive CsI scintillator. Combined with the SUREengine-Advance and SCORE PRO Advance it ensures clearer fluoroscopy and radiography images. The FPD offers five sizes of selectable fields of view up to 43 x 43 cm, allowing a wide range of examinations.

Comprehensive dose reduction and management

Equipped with various functions to reduce radiation exposure levels effectively, the system provides peace of mind for both patients and attending personnel during examinations. Highly developed mechanisms for efficient dose reduction and X-ray exposure control are available.

Advanced imaging technologies increase efficiency

The Sonialvision G4 2-in-1 R/F system performs

digital radiographic
pulsed-fluoroscopy
extended video-fluoroscopy examinations

and additional advanced imaging technologies, like

DSA
real-time and motion-tolerant RSM-DSA
Slot Radiography and
Tomosynthesis for general radiography examinations.

DSA & real-time and motion-tolerant RSM-DSA

The large field of view means that DSA can be used for examinations of the hepatic artery to the entire lower extremities. The RSM-DSA filter provides continuous automatic masking resulting in a DSA-like image even when the patient or the table is moved. It produces excellent results where patient movement is inevitable, such as bolus chasing and abdominal examinations, particularly when patients find it difficult to hold their breath.

Slot Radiography

Slot Radiography provides a quick and efficient way to acquire long leg and full spine images. Images can be acquired with the table in any position (from supine to erect) making weight-bearing procedures easy. The large FPD and the slit beam exposure method results in better patient coverage than traditionally achievable with CR cassettes. In addition, the slot technique produces low dose images with minimal geometric distortion and accurate measurements.
