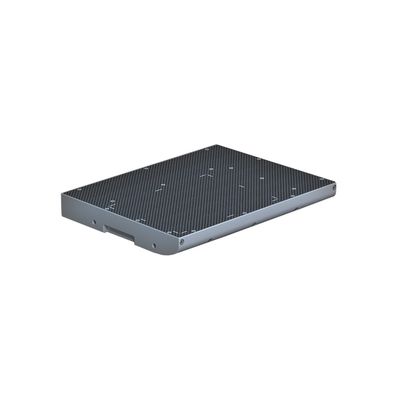

Medical Scientific - Model SOLO SX - Digital Specimen and Biomedical Imaging Detector
12x15 cm (4* x 6*) Digital Flat P. 49.5 micron pixel size. The detector is used for acquiring digital X-ray images for pathology applications. The SOLO™ SX is utilized to obtain high quality images of a wide range of specimens for further study and analysis. The detector is based on CMOS technology, which guarantees a high speed of image acquisition, high resolution, and low noise. The detector was developed based on the technology of a mammography detector. As it is critical to spot small details in mammograms, the same precision is achieved with the SOLO™ SX for specimen analysis. Additional potential applications for the SOLO™ SX include Panoramic Dental, C-Arm Fluoroscopy, and others.
- Low noise CMOS technology
- High sensitivity
- High Speed GigE Vision interface
- Several scintillator options
- Hardware and software binning
- On-Chip Analog Amplifier
- Proprietary wide dynamic range enhancement algorithm
- Programmable synchronization with various X-ray sources
- Built-in shock indicator and temperature logging device
- Low power consumption mode
- Complete set of software tools (SDK, Drivers, Service Tools, etc.)
- Complete Documentation (SDK help files and samples, manuals, etc.)
- Custom designs available
Detector Technology: CMOS
Scintillator: Several Options Available
Number of Pixels: 2304 x 2944
Pixel Pitch: 49.5 μm
Limiting Resolution: 10.1 lp/mm
A/D Conversion: 14 bits / 16 bits
Frame Rate (Dynamic Mode): Up to 40 fps
Interface: 1000BASE-T GigE Vision (Full Standard Compatibility), USB 2.0 (Service Port)
Ingress Protection: IP 41 (Standard); IP 65 (Optional)
Energy Range: 15-220 kVp
Storage Temperature: -5ºC to +55ºC
Operating Temperature: +5ºC to +45ºC
Power Supply: 11-26 VDC, 1.5 A (max)
Dimensions: 278 x 150 x 28 mm
Weight: 1.5 kg (avg)
