PTW NORMI - Model 3D - Digital Volume Tomography (3D) X-Ray Modalities

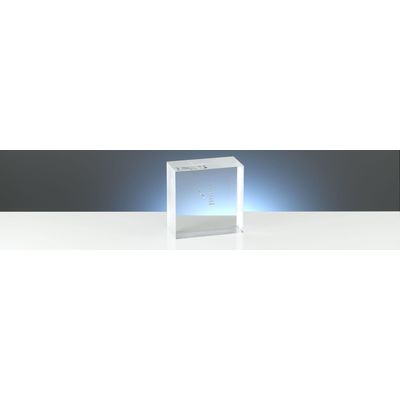

When quality matters in imaging QA - Test object for digital volume tomography (3D) X-ray modalities The NORMI 3D is a test object for quality control and acceptance tests of digital volume tomography (DVT) X-ray installations as well as for DVT installations with integrated imaging function.
Most popular related searches
The NORMI 3D consists out of three PMMA plates, while the detail objects, bore holes with seven different diameters are embedded in the middle plate.
The bore holes are within a 30 mm radius in parallel with the Z-axis. In addition, the whole test object has a continuous bore hole with a diameter of 2.5 mm.
